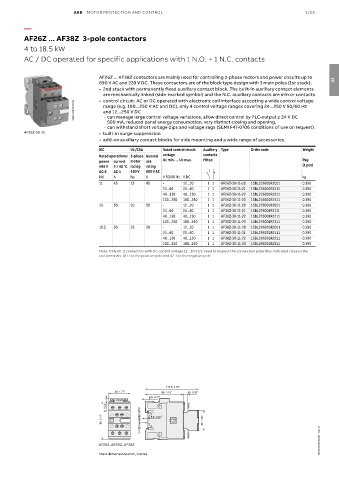

Page 99 - Motor protection and control Manual motor starters, contactors and overload relays

ABB MOTOR PROTECTION AND CONTROL 3/25

—
AF26Z ... AF38Z 3-pole contactors

4 to 18.5 kW
AC / DC operated for specific applications with 1 N.O. + 1 N.C. contacts

AF26Z ... AF38Z contactors are mainly used for controlling 3-phase motors and power circuits up to
690 V AC and 220 V DC. These contactors are of the block type design with 3 main poles (1st stack): 03
• 2nd stack with permanently fixed auxiliary contact block. The built-in auxiliary contact elements
are mechanically linked (side-marked symbol) and the N.C. auxiliary contacts are mirror contacts
• control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage
1SBC101003V0014 range (e.g. 100...250 V AC and DC), only 4 control voltage ranges covering 24...250 V 50/60 Hz
and 12...250 V DC
- can manage large control voltage variations, allow direct control by PLC-output ≥ 24 V DC
500 mA, reduced panel energy consumption, very distinct closing and opening,
- can withstand short voltage dips and voltage sags (SEMI F47-0706 conditions of use on request).
AF26Z-30-11 • built-in surge suppression
• add-on auxiliary contact blocks for side mounting and a wide range of accessories.
IEC UL/CSA Rated control circuit Auxiliary Type Order code Weight
Rated operational 3-phase General voltage contacts
power current motor use Uc min. … Uc max. fitted Pkg
400 V θ ≤ 40 °C rating rating (1 pce)
AC-3 AC-1 480 V 600 V AC
kW A hp A V 50/60 Hz V DC kg
11 45 15 45 - 12...20 1 1 AF26Z-30-11-20 1SBL236001R2011 0.390
24...60 20...60 1 1 AF26Z-30-11-21 1SBL236001R2111 0.390
48...130 48...130 1 1 AF26Z-30-11-22 1SBL236001R2211 0.390
100...250 100...250 1 1 AF26Z-30-11-23 1SBL236001R2311 0.390
15 50 20 50 - 12...20 1 1 AF30Z-30-11-20 1SBL276001R2011 0.390
24...60 20...60 1 1 AF30Z-30-11-21 1SBL276001R2111 0.390
48...130 48...130 1 1 AF30Z-30-11-22 1SBL276001R2211 0.390
100...250 100...250 1 1 AF30Z-30-11-23 1SBL276001R2311 0.390
18.5 50 25 50 - 12...20 1 1 AF38Z-30-11-20 1SBL296001R2011 0.390
24...60 20...60 1 1 AF38Z-30-11-21 1SBL296001R2111 0.390
48...130 48...130 1 1 AF38Z-30-11-22 1SBL296001R2211 0.390
100...250 100...250 1 1 AF38Z-30-11-23 1SBL296001R2311 0.390
Note: Only AF..Z contactors with DC control voltage 12...20 V DC need to respect the connection polarities indicated close to the
coil terminals: A1+ for the positive pole and A2- for the negative pole

111.5 4.30"
45 1.77" 80 3.15" 10 0.39"
5.5 0.22"
6 0.24"

80 3.15" 35 mm EN/IEC 60715 5.5 0.22" 43 1.69"
1SBC100493S0201 - Rev. B

AF26Z, AF30Z, AF38Z
Main dimensions mm, inches
