ABB MOTOR PROTECTION AND CONTROL 3/27

—

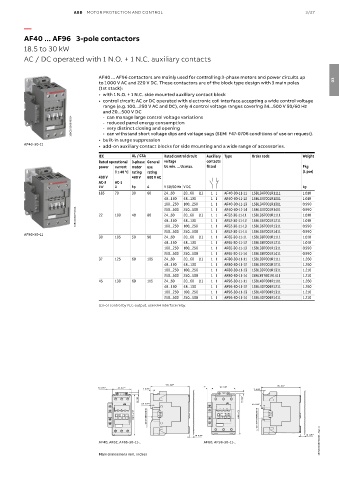

AF40 ... AF96 3-pole contactors

18.5 to 30 kW
AC / DC operated with 1 N.O. + 1 N.C. auxiliary contacts

AF40 ... AF96 contactors are mainly used for controlling 3-phase motors and power circuits up
to 1 000 V AC and 220 V DC. These contactors are of the block type design with 3 main poles 03
(1st stack):
• with 1 N.O. + 1 N.C. side mounted auxiliary contact block
• control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage
range (e.g. 100...250 V AC and DC), only 4 control voltage ranges covering 24...500 V 50/60 Hz
and 20...500 V DC
- can manage large control voltage variations
1SBC101005V0014 - reduced panel energy consumption
- very distinct closing and opening
- can withstand short voltage dips and voltage sags (SEMI F47-0706 conditions of use on request).
• built-in surge suppression
AF40-30-11
• add-on auxiliary contact blocks for side mounting and a wide range of accessories.
IEC UL / CSA Rated control circuit Auxiliary Type Order code Weight
Rated operational 3-phase General voltage contacts
power current motor use Uc min. … Uc max. fitted Pkg
θ ≤ 40 °C rating rating (1 pce)
400 V 480 V 600 V AC
AC-3 AC-1
kW A hp A V 50/60 Hz V DC kg
185 70 30 60 24...60 20...60 (1) 1 1 AF40-30-11-11 1SBL347001R1111 1.010
48...130 48...130 1 1 AF40-30-11-12 1SBL347001R1211 1.010
100...250 100...250 1 1 AF40-30-11-13 1SBL347001R1311 0.990
1SBC101017V0014 22 100 40 80 24...60 20...60 (1) 1 1 AF52-30-11-11 1SBL367001R1111 1.010
0.990
250...500
1SBL347001R1411
AF40-30-11-14
250...500
1 1
AF52-30-11-12
48...130
48...130
1SBL367001R1211
1 1
1.010
100...250
250...500 100...250 1 1 AF52-30-11-13 1SBL367001R1311 0.990
250...500
AF52-30-11-14
0.990
1 1
1SBL367001R1411
AF80-30-11
30 105 50 90 24...60 20...60 (1) 1 1 AF65-30-11-11 1SBL387001R1111 1.010
48...130 48...130 1 1 AF65-30-11-12 1SBL387001R1211 1.010
100...250 100...250 1 1 AF65-30-11-13 1SBL387001R1311 0.990
250...500 250...500 1 1 AF65-30-11-14 1SBL387001R1411 0.990
37 125 60 105 24...60 20...60 (1) 1 1 AF80-30-11-11 1SBL397001R1111 1.260
48...130 48...130 1 1 AF80-30-11-12 1SBL397001R1211 1.260
100...250 100...250 1 1 AF80-30-11-13 1SBL397001R1311 1.210
250...500 250...500 1 1 AF80-30-11-14 1SBL397001R1411 1.210
45 130 60 115 24...60 20...60 (1) 1 1 AF96-30-11-11 1SBL407001R1111 1.260
48...130 48...130 1 1 AF96-30-11-12 1SBL407001R1211 1.260
100...250 100...250 1 1 AF96-30-11-13 1SBL407001R1311 1.210
250...500 250...500 1 1 AF96-30-11-14 1SBL407001R1411 1.210
(1) For control by PLC-output, use RA4 interface relay.

111 4.37"
12 0.47" 55 2.17" 111 4.37" 12 0.47" 70 2.76" 116 4.57"
12 0.47"
55 2.17"
7 0.28" 7 0.28" 7 0.28"
6 0.24" 6 0.24" 6 0.24"
5.5 0.22" 5.5 0.22"
5.5 0.22"
119.5 4.70" 119.5 4.70" 35 mm EN/IEC 60715 35 mm EN/IEC 60715 119.5 4.70" 35 x 15 mm EN/IEC 60715

10 0.39" 10 0.39"
10 0.39"

AF40, AF52, AF65-30-11-.. AF80, AF96-30-11-.. 1SBC100487S0201 - Rev. A
Main dimensions mm, inches
