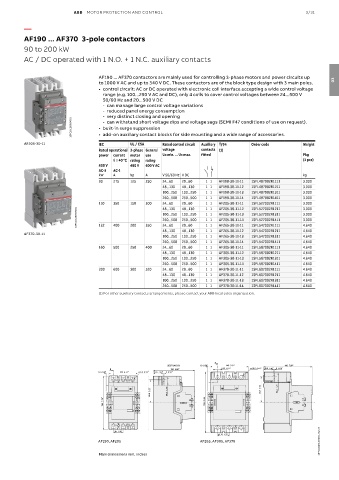

Page 105 - Motor protection and control Manual motor starters, contactors and overload relays

ABB MOTOR PROTECTION AND CONTROL 3/31

—

AF190 ... AF370 3-pole contactors
90 to 200 kW
AC / DC operated with 1 N.O. + 1 N.C. auxiliary contacts

AF190 ... AF370 contactors are mainly used for controlling 3-phase motors and power circuits up
to 1000 V AC and up to 340 V DC. These contactors are of the block type design with 3 main poles. 03
• control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage
range (e.g. 100...250 V AC and DC), only 4 coils to cover control voltages between 24...500 V
50/60 Hz and 20...500 V DC
- can manage large control voltage variations
- reduced panel energy consumption
- very distinct closing and opening
1SFC101261V0001 • built-in surge suppression
- can withstand short voltage dips and voltage sags (SEMI F47 conditions of use on request).
• add-on auxiliary contact blocks for side mounting and a wide range of accessories.
AF205-30-11 IEC UL / CSA Rated control circuit Auxiliary Type Order code Weight
Rated operational 3-phase General voltage contacts (1)
power current motor use Uc min. ... Uc max. fitted Pkg
θ ≤ 40 °C rating rating (1 pce)
400 V 480 V 600 V AC
AC-3 AC-1
kW A hp A V 50/60 Hz V DC kg
90 275 125 250 24...60 20...60 1 1 AF190-30-11-11 1SFL487002R1111 3.000
48...130 48...130 1 1 AF190-30-11-12 1SFL487002R1211 3.000
100...250 100...250 1 1 AF190-30-11-13 1SFL487002R1311 3.000
250...500 250...500 1 1 AF190-30-11-14 1SFL487002R1411 3.000
110 350 150 300 24...60 20...60 1 1 AF205-30-11-11 1SFL527002R1111 3.000
1 1
48...130
48...130
3.000
AF205-30-11-12
1SFL527002R1211
1SFC101258V0001 100...250 100...250 1 1 AF205-30-11-13 1SFL527002R1311 3.000
250...500
AF205-30-11-14
1SFL527002R1411
250...500
1 1
3.000
400
24...60
132
350
200
4.640
1 1
AF265-30-11-12
48...130
48...130 20...60 1 1 AF265-30-11-11 1SFL547002R1111 4.640
1SFL547002R1211
AF370-30-11
100...250 100...250 1 1 AF265-30-11-13 1SFL547002R1311 4.640
250...500 250...500 1 1 AF265-30-11-14 1SFL547002R1411 4.640
160 500 250 400 24...60 20...60 1 1 AF305-30-11-11 1SFL587002R1111 4.640
48...130 48...130 1 1 AF305-30-11-12 1SFL587002R1211 4.640
100...250 100...250 1 1 AF305-30-11-13 1SFL587002R1311 4.640
250...500 250...500 1 1 AF305-30-11-14 1SFL587002R1411 4.640
200 600 300 520 24...60 20...60 1 1 AF370-30-11-11 1SFL607002R1111 4.640
48...130 48...130 1 1 AF370-30-11-12 1SFL607002R1211 4.640
100...250 100...250 1 1 AF370-30-11-13 1SFL607002R1311 4.640
250...500 250...500 1 1 AF370-30-11-14 1SFL607002R1411 4.640
(1) For other auxiliary contacts arrangements, please contact your ABB local sales organization.
A
SECTION B-B 10 0.39" 140 5.51" 180 7.09"
B 152 5.98" 19.5 0.77" ø 10.5 0.41" 35.5 1.40" 5 0.20"
10 0.39" 105 4.13" ø 8.5 0.33" 35.5 1.40" 5 0.20"
83.5 3.29" 29.5 1.16" 94.7 3.73" 33.4 1.31"
196 7.72" 225 8.86"

1SFC101091C0201 - Rev. E
35 1.38"
43.75 1.72"
AF190, AF205 AF265, AF305, AF370
Main dimensions mm, inches
