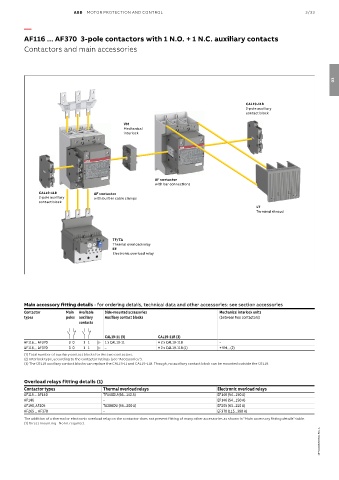

Page 107 - Motor protection and control Manual motor starters, contactors and overload relays

ABB MOTOR PROTECTION AND CONTROL 3/33

—

AF116 ... AF370 3-pole contactors with 1 N.O. + 1 N.C. auxiliary contacts
Contactors and main accessories

03

CAL19-11B
2-pole auxiliary
contact block

VM
Mechanical
interlock

AF contactor
with bar connections
CAL19-11B AF contactor
2-pole auxiliary with built-in cable clamps
contact block
LT
Terminal shroud

TF/TA
Thermal overload relay
EF
Electronic overload relay

Main accessory fitting details - for ordering details, technical data and other accessories: see section accessories
Contactor Main Available Side-mounted accessories Mechanical interlock units
types poles auxiliary Auxiliary contact blocks (between two contactors)
contacts

CAL19-11 (3) CAL19-11B (3)
AF116 ... AF370 3 0 1 1 1 x CAL19-11 + 2 x CAL19-11B –
AF116 ... AF370 3 0 1 1 – + 2 x CAL19-11B (1) + VM... (2)
(1) Total number of auxiliary contact blocks for the two contactors.
(2) Interlock type, according to the contactor ratings (see "Accessories").
(3) The CEL19 auxiliary contact blocks can replace the CAL19-11 and CAL19-11B. Though, no auxiliary contact block can be mounted outside the CEL19.

Overload relays fitting details (1)
Contactor types Thermal overload relays Electronic overload relays
AF116 ... AF140 TF140DU (66...142 A) EF146 (54...150 A)
AF146 – EF146 (54...150 A)
AF190, AF205 TA200DU (66...200 A) EF205 (63...210 A)
AF265 ... AF370 – EF370 (115...380 A)
The addition of a thermal or electronic overload relay on the contactor does not prevent fitting of many other accessories as shown in "Main accessory fitting details" table.
(1) Direct mounting - No kit required.
1SFC101132C0201- Rev. A
