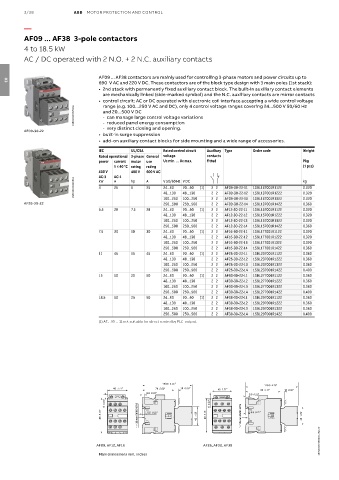

Page 112 - Motor protection and control Manual motor starters, contactors and overload relays

3/38 ABB MOTOR PROTECTION AND CONTROL

—
AF09 ... AF38 3-pole contactors

4 to 18.5 kW
AC / DC operated with 2 N.O. + 2 N.C. auxiliary contacts

AF09 ... AF38 contactors are mainly used for controlling 3-phase motors and power circuits up to
690 V AC and 220 V DC. These contactors are of the block type design with 3 main poles (1st stack):
03
• 2nd stack with permanently fixed auxiliary contact block. The built-in auxiliary contact elements
are mechanically linked (side-marked symbol) and the N.C. auxiliary contacts are mirror contacts
• control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage
range (e.g. 100...250 V AC and DC), only 4 control voltage ranges covering 24...500 V 50/60 Hz
1SBC101002V0014 and 20...500 V DC
- can manage large control voltage variations
- reduced panel energy consumption
- very distinct closing and opening.
AF09-30-22
• built-in surge suppression
• add-on auxiliary contact blocks for side mounting and a wide range of accessories.
IEC UL/CSA Rated control circuit Auxiliary Type Order code Weight
Rated operational 3-phase General voltage contacts
power current motor use Uc min. … Uc max. fitted Pkg
θ ≤ 40 °C rating rating (1 pce)
400 V 480 V 600 V AC
AC-3 AC-1 hp A V 50/60 Hz V DC kg
1SBC101004V0014 4 25 5 25 24...60 20…60 (1) 2 2 AF09-30-22-11 1SBL137001R1122 0.320
A
kW
2 2
48...130
48...130
1SBL137001R1222
AF09-30-22-12
0.320
AF09-30-22-14
0.360
1SBL137001R1422
AF26-30-22 100...250 100...250 2 2 AF09-30-22-13 1SBL137001R1322 0.320
2 2
250...500
250...500
5.5 28 7.5 28 24...60 20…60 (1) 2 2 AF12-30-22-11 1SBL157001R1122 0.320
48...130 48...130 2 2 AF12-30-22-12 1SBL157001R1222 0.320
100...250 100...250 2 2 AF12-30-22-13 1SBL157001R1322 0.320
250...500 250...500 2 2 AF12-30-22-14 1SBL157001R1422 0.360
7.5 30 10 30 24...60 20…60 (1) 2 2 AF16-30-22-11 1SBL177001R1122 0.320
48...130 48...130 2 2 AF16-30-22-12 1SBL177001R1222 0.320
100...250 100...250 2 2 AF16-30-22-13 1SBL177001R1322 0.320
250...500 250...500 2 2 AF16-30-22-14 1SBL177001R1422 0.360
11 45 15 45 24...60 20…60 (1) 2 2 AF26-30-22-11 1SBL237001R1122 0.360
48...130 48...130 2 2 AF26-30-22-12 1SBL237001R1222 0.360
100...250 100...250 2 2 AF26-30-22-13 1SBL237001R1322 0.360
250...500 250...500 2 2 AF26-30-22-14 1SBL237001R1422 0.400
15 50 20 50 24...60 20…60 (1) 2 2 AF30-30-22-11 1SBL277001R1122 0.360
48...130 48...130 2 2 AF30-30-22-12 1SBL277001R1222 0.360
100...250 100...250 2 2 AF30-30-22-13 1SBL277001R1322 0.360
250...500 250...500 2 2 AF30-30-22-14 1SBL277001R1422 0.400
18.5 50 25 50 24...60 20…60 (1) 2 2 AF38-30-22-11 1SBL297001R1122 0.360
48...130 48...130 2 2 AF38-30-22-12 1SBL297001R1222 0.360
100...250 100...250 2 2 AF38-30-22-13 1SBL297001R1322 0.360
250...500 250...500 2 2 AF38-30-22-14 1SBL297001R1422 0.400
(1) AF..-30-..-11 not suitable for direct control by PLC-output.

110.5 4.35"
119.5 4.70"
45 1.77" 71 2.80" 10 0.39" 35 1.38" 2 x 80 3.15" 10 0.39"
45 1.77"
5.5 0.22" ø 4.2 0.17" M4 8-32 UNC 5.5 0.22"
6 0.24" 6 0.24"
80 3.15" 35 mm EN/IEC 60715 5.5 0.22" 43 1.69" 80 3.15" 60 2.36" 70 2.76" 35 mm EN/IEC 60715 5.5 0.22" 43 1.69"
5 0.20"
1SBC101373S0201 - Rev. D
5 0.20"
AF09, AF12, AF16 AF26, AF30, AF38
Main dimensions mm, inches
