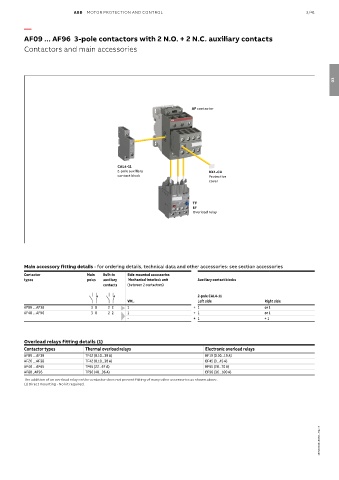

Page 115 - Motor protection and control Manual motor starters, contactors and overload relays

ABB MOTOR PROTECTION AND CONTROL 3/41

—

AF09 ... AF96 3-pole contactors with 2 N.O. + 2 N.C. auxiliary contacts
Contactors and main accessories

03

AF contactor

CAL4-11
2-pole auxiliary BX4-CA
contact block Protective
cover

TF
EF
Overload relay

Main accessory fitting details - for ordering details, technical data and other accessories: see section accessories
Contactor Main Built-in Side-mounted accessories
types poles auxiliary Mechanical interlock unit Auxiliary contact blocks
contacts (between 2 contactors)
2-pole CAL4-11
VM.. Left side Right side
AF09 ... AF38 3 0 2 2 1 + 1 or 1
AF40 ... AF96 3 0 2 2 1 + 1 or 1
– + 1 + 1

Overload relays fitting details (1)
Contactor types Thermal overload relays Electronic overload relays
AF09 ... AF38 TF42 (0.10...38 A) EF19 (0.10...19 A)
AF26 ... AF38 TF42 (0.10...38 A) EF45 (9...45 A)
AF40 ... AF65 TF65 (22...67 A) EF65 (20...70 A)
AF80 , AF96 TF96 (40...96 A) EF96 (36...100 A)
The addition of an overload relay on the contactor does not prevent fitting of many other accessories as shown above.
(1) Direct mounting - No kit required.

1SBC100494S0201 - Rev. B
