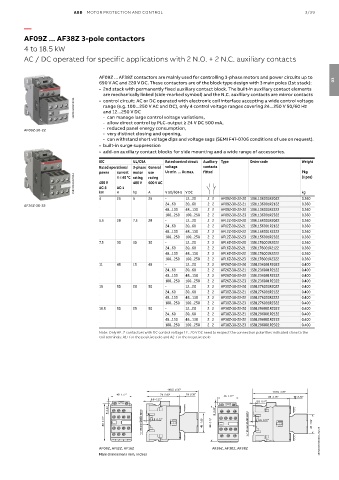

AF09Z ... AF38Z 3-pole contactors

4 to 18.5 kW
AC / DC operated for specific applications with 2 N.O. + 2 N.C. auxiliary contacts

AF09Z ... AF38Z contactors are mainly used for controlling 3-phase motors and power circuits up to
690 V AC and 220 V DC. These contactors are of the block type design with 3 main poles (1st stack): 03
• 2nd stack with permanently fixed auxiliary contact block. The built-in auxiliary contact elements
are mechanically linked (side-marked symbol) and the N.C. auxiliary contacts are mirror contacts
1SBC101002V0014 range (e.g. 100...250 V AC and DC), only 4 control voltage ranges covering 24...250 V 50/60 Hz
• control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage
and 12...250 V DC
- can manage large control voltage variations,
- allow direct control by PLC-output ≥ 24 V DC 500 mA,
- reduced panel energy consumption,
AF09Z-30-22
- very distinct closing and opening,
- can withstand short voltage dips and voltage sags (SEMI F47-0706 conditions of use on request).
• built-in surge suppression
• add-on auxiliary contact blocks for side mounting and a wide range of accessories.
IEC UL/CSA Rated control circuit Auxiliary Type Order code Weight
Rated operational 3-phase General voltage contacts
power current motor use Uc min. … Uc max. fitted Pkg
1SBC101004V0014 400 V AC-1 480 V 600 V AC
(1 pce)
θ ≤ 40 °C
rating
rating
AC-3
12...20
0.360
5
-
4 kW A 25 hp A 25 V 50/60 Hz V DC 2 2 AF09Z-30-22-20 1SBL136001R2022 kg
24...60 20...60 2 2 AF09Z-30-22-21 1SBL136001R2122 0.360
AF26Z-30-22
48...130 48...130 2 2 AF09Z-30-22-22 1SBL136001R2222 0.360
100...250 100...250 2 2 AF09Z-30-22-23 1SBL136001R2322 0.360
5.5 28 7.5 28 - 12...20 2 2 AF12Z-30-22-20 1SBL156001R2022 0.360
24...60 20...60 2 2 AF12Z-30-22-21 1SBL156001R2122 0.360
48...130 48...130 2 2 AF12Z-30-22-22 1SBL156001R2222 0.360
100...250 100...250 2 2 AF12Z-30-22-23 1SBL156001R2322 0.360
7.5 30 10 30 - 12...20 2 2 AF16Z-30-22-20 1SBL176001R2022 0.360
24...60 20...60 2 2 AF16Z-30-22-21 1SBL176001R2122 0.360
48...130 48...130 2 2 AF16Z-30-22-22 1SBL176001R2222 0.360
100...250 100...250 2 2 AF16Z-30-22-23 1SBL176001R2322 0.360
11 45 15 45 - 12...20 2 2 AF26Z-30-22-20 1SBL236001R2022 0.400
24...60 20...60 2 2 AF26Z-30-22-21 1SBL236001R2122 0.400
48...130 48...130 2 2 AF26Z-30-22-22 1SBL236001R2222 0.400
100...250 100...250 2 2 AF26Z-30-22-23 1SBL236001R2322 0.400
15 50 20 50 - 12...20 2 2 AF30Z-30-22-20 1SBL276001R2022 0.400
24...60 20...60 2 2 AF30Z-30-22-21 1SBL276001R2122 0.400
48...130 48...130 2 2 AF30Z-30-22-22 1SBL276001R2222 0.400
100...250 100...250 2 2 AF30Z-30-22-23 1SBL276001R2322 0.400
18.5 50 25 50 - 12...20 2 2 AF38Z-30-22-20 1SBL296001R2022 0.400
24...60 20...60 2 2 AF38Z-30-22-21 1SBL296001R2122 0.400
48...130 48...130 2 2 AF38Z-30-22-22 1SBL296001R2222 0.400
100...250 100...250 2 2 AF38Z-30-22-23 1SBL296001R2322 0.400
Note: Only AF..Z contactors with DC control voltage 12...20 V DC need to respect the connection polarities indicated close to the
coil terminals: A1+ for the positive pole and A2- for the negative pole

110.5 4.35"
119.5 4.70"
45 1.77" 71 2.80" 10 0.39" 45 1.77" 2 x 80 3.15" 10 0.39"
35 1.38"
5.5 0.22" ø 4.2 0.17" M4 8-32 UNC
5.5 0.22"
6 0.24"
80 3.15" 35 mm EN/IEC 60715 5.5 0.22" 43 1.69" 80 3.15" 60 2.36" 6 0.24" 70 2.76" 35 mm EN/IEC 60715 5.5 0.22" 43 1.69"
5 0.20"

5 0.20" 1SBC101374S0201 - Rev. B
AF09Z, AF12Z, AF16Z AF26Z, AF30Z, AF38Z
Main dimensions mm, inches
