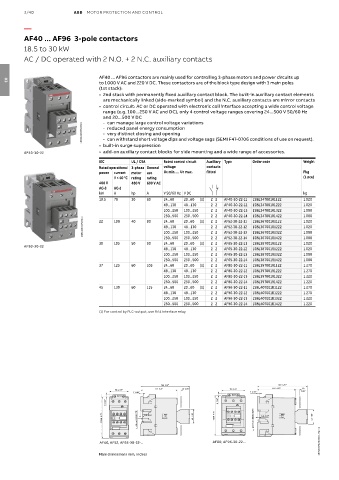

Page 114 - Motor protection and control Manual motor starters, contactors and overload relays

3/40 ABB MOTOR PROTECTION AND CONTROL

—
AF40 ... AF96 3-pole contactors

18.5 to 30 kW
AC / DC operated with 2 N.O. + 2 N.C. auxiliary contacts

AF40 ... AF96 contactors are mainly used for controlling 3-phase motors and power circuits up
to 1 000 V AC and 220 V DC. These contactors are of the block type design with 3 main poles
03
(1st stack):
• 2nd stack with permanently fixed auxiliary contact block. The built-in auxiliary contact elements
are mechanically linked (side-marked symbol) and the N.C. auxiliary contacts are mirror contacts
• control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage
range (e.g. 100...250 V AC and DC), only 4 control voltage ranges covering 24...500 V 50/60 Hz
and 20...500 V DC
- can manage large control voltage variations
1SBC101006V0014 - reduced panel energy consumption
- very distinct closing and opening
- can withstand short voltage dips and voltage sags (SEMI F47-0706 conditions of use on request).
• built-in surge suppression
AF40-30-22 • add-on auxiliary contact blocks for side mounting and a wide range of accessories.
IEC UL / CSA Rated control circuit Auxiliary Type Order code Weight
Rated operational 3-phase General voltage contacts
power current motor use Uc min. … Uc max. fitted Pkg
θ ≤ 40 °C rating rating (1 pce)
400 V 480 V 600 V AC
AC-3 AC-1
kW A hp A V 50/60 Hz V DC kg
18.5 70 30 60 24...60 20...60 (1) 2 2 AF40-30-22-11 1SBL347001R1122 1.020
48...130 48...130 2 2 AF40-30-22-12 1SBL347001R1222 1.020
100...250 100...250 2 2 AF40-30-22-13 1SBL347001R1322 1.000
250...500 250...500 (1) 2 2 AF40-30-22-14 1SBL347001R1422 1.000
1SBC101007V0014 48...130 48...130 2 2 AF52-30-22-12 1SBL367001R1222 1.020
1.020
40
80
2 2
AF52-30-22-11
20...60
1SBL367001R1122
24...60
100
22
100...250
2 2
250...500 100...250 2 2 AF52-30-22-13 1SBL367001R1322 1.000
250...500
1SBL367001R1422
1.000
AF52-30-22-14
30 105 50 90 24...60 20...60 (1) 2 2 AF65-30-22-11 1SBL387001R1122 1.020
AF80-30-22
48...130 48...130 2 2 AF65-30-22-12 1SBL387001R1222 1.020
100...250 100...250 2 2 AF65-30-22-13 1SBL387001R1322 1.000
250...500 250...500 2 2 AF65-30-22-14 1SBL387001R1422 1.000
37 125 60 105 24...60 20...60 (1) 2 2 AF80-30-22-11 1SBL397001R1122 1.270
48...130 48...130 2 2 AF80-30-22-12 1SBL397001R1222 1.270
100...250 100...250 2 2 AF80-30-22-13 1SBL397001R1322 1.220
250...500 250...500 2 2 AF80-30-22-14 1SBL397001R1422 1.220
45 130 60 115 24...60 20...60 (1) 2 2 AF96-30-22-11 1SBL407001R1122 1.270
48...130 48...130 2 2 AF96-30-22-12 1SBL407001R1222 1.270
100...250 100...250 2 2 AF96-30-22-13 1SBL407001R1322 1.220
250...500 250...500 2 2 AF96-30-22-14 1SBL407001R1422 1.220
(1) For control by PLC-output, use RA4 interface relay.

144 5.67" 149 5.87"
144 5.67" 149 5.87"
111 4.37"
111 4.37" 10 0.39" 10 0.39" 70 2.76" 116 4.57" 116 4.57" 10 10
55 2.17"
55 2.17" 70 2.76" 7 0.28" 0.39" 0.39"
7 0.28" 7 0.28" 7 0.28"
6 0.24" 6 0.24" 6 0.24" 6 0.24"
119.5 4.70" 119.5 4.70" 35 mm EN/IEC 60715 35 mm EN/IEC 60715 5.5 0.22" 43 1.69" 43 1.69" 119.5 4.70" 119.5 4.70" 35 x 15 mm EN/IEC 60715 35 x 15 mm EN/IEC 60715 5.5 0.22"" 5.5 5.5 0.22"" 43 1.69" 43 1.69"
0.22
5.5
0.22
5.5 0.22"
1SBC101742S0201 - Rev. A

AF80, AF96-30-22-..
AF40, AF52, AF65-30-22-..
Main dimensions mm, inches
