ABB MOTOR PROTECTION AND CONTROL 3/35

—

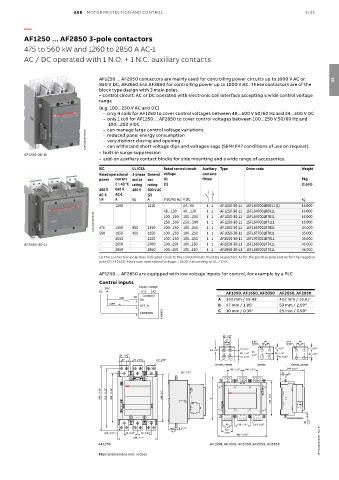

AF1250 ... AF2850 3-pole contactors
475 to 560 kW and 1260 to 2850 A AC-1
AC / DC operated with 1 N.O. + 1 N.C. auxiliary contacts

AF1250 ... AF2050 contactors are mainly used for controlling power circuits up to 1000 V AC or 03
850 V DC, AF2650 and AF2850 for controlling power up to 1000 V AC. These contactors are of the
block type design with 3 main poles.
– control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage
range
(e.g. 100...250 V AC and DC)
- only 4 coils for AF1250 to cover control voltages between 48...500 V 50/60 Hz and 24...500 V DC
- only 1 coil for AF1350 ... AF2850 to cover control voltages between 100...250 V 50/60 Hz and
100...250 V DC
- can manage large control voltage variations
1SFC101027V0001 - reduced panel energy consumption
- very distinct closing and opening
- can withstand short voltage dips and voltages sags (SEMI F47 conditions of use on request).
• built-in surge suppression
AF1250-30-11
• add-on auxiliary contact blocks for side mounting and a wide range of accessories.
IEC UL/CSA Rated control circuit Auxiliary Type Order code Weight
Rated operational 3-phase General voltage contacts
power current motor use Uc fitted Pkg
θ ≤ 40 °C rating rating (1) (1 pce)
400 V 690 V 480 V 600 V AC
AC-3 AC-1 (2)
kW A hp A V 50/60 Hz V DC kg
- 1260 - 1210 - 24…60 1 1 AF1250-30-11 1SFL647001R6811 (1) 16.000
48…130 48…130 1 1 AF1250-30-11 1SFL647001R6911 16.000
1SFC101031V0001 475 1350 800 1350 100…250 100…250 1 1 AF1250-30-11 1SFL647001R7011 16.000
250…500
16.000
AF1250-30-11
250…500
1 1
1SFL647001R7111
100…250
1SFL657001R7011
1 1
AF1350-30-11
34.000
100…250
560 1650 900 1650 100…250 100…250 1 1 AF1650-30-11 1SFL677001R7011 35.000
- 2050 - 2100 100…250 100…250 1 1 AF2050-30-11 1SFL707001R7011 35.000
AF2650-30-11 - 2650 - 2700 100...250 100...250 1 1 AF2650-30-11 1SFL667001R7011 45.000
- 2850 - 2850 100...250 100...250 1 1 AF2850-30-11 1SFL687001R7011 45.000
(1) The connection polarities indicated close to the coil terminals must be respected: A1 for the positive pole and A2 for the negative
pole.(2) AF2650: Maximum operational voltage = 1000 V according to UL / CSA.
AF1250 ... AF2850 are equipped with low voltage inputs for control, for example by a PLC
Control inputs
AF1350, AF1650, AF2050 AF2650, AF2850
A 392 mm / 15.43" 422 mm / 16.61"
B 47 mm / 1.85" 53 mm / 2.09"
C 10 mm / 0.39" 25 mm / 0.98"
40 1.57"
27
ø 13 40 ø 13 40
1.06" 0.51" 1.57" 0.51" 1.57"
17 0.67" 17 0.67" 17 0.67"
13 0.51"
30 1.18" 13 30 1.18" 40 1.57"
50 1.97" 0.51"
10 0.39" 10 0.39"
27 72 2.83" ø 7 0.28"
AF1350, AF1650 AF2050 AF2650, AF2850
136 5.35" 136 5.35" 244 9.61"
242 9.53" B C

344 13.54" 313 12.32" 263 10.35" 249 9.8" A 312 12.3"

40 1.57"
80 136 5.35" ø 9 0.35"
46.5 8 0.31" 3.15"
18.3" 101
ø13 0.51" 72 2.83" 72 2.83" 3.98"
438 17.24"
210 8.27"
AF1250 AF1350, AF1650, AF2050, AF2650, AF2850 1SFC101094C0201 - Rev. B
Main dimensions mm, inches
