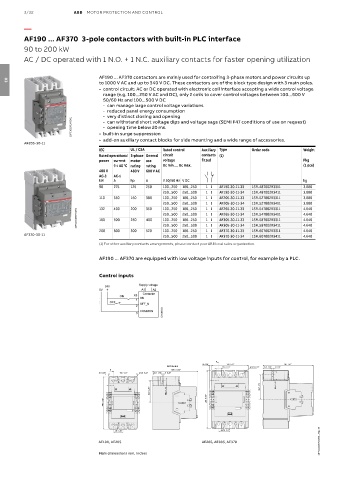

Page 106 - Motor protection and control Manual motor starters, contactors and overload relays

3/32 ABB MOTOR PROTECTION AND CONTROL

—

AF190 ... AF370 3-pole contactors with built-in PLC interface
90 to 200 kW
AC / DC operated with 1 N.O. + 1 N.C. auxiliary contacts for faster opening utilization

AF190 ... AF370 contactors are mainly used for controlling 3-phase motors and power circuits up
to 1000 V AC and up to 340 V DC. These contactors are of the block type design with 3 main poles.
03
• control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage
range (e.g. 100...250 V AC and DC), only 2 coils to cover control voltages between 100...500 V
50/60 Hz and 100...500 V DC
- can manage large control voltage variations
- reduced panel energy consumption
- very distinct closing and opening
1SFC101261V0001 • built-in surge suppression
- can withstand short voltage dips and voltage sags (SEMI F47 conditions of use on request)
- opening time below 20 ms.
• add-on auxiliary contact blocks for side mounting and a wide range of accessories.
AF205-30-11
IEC UL / CSA Rated control Auxiliary Type Order code Weight
Rated operational 3-phase General circuit contacts (1)
power current motor use voltage fitted Pkg
θ ≤ 40 °C rating rating Uc min. ... Uc max. (1 pce)
400 V 480 V 600 V AC
AC-3 AC-1
kW A hp A V 50/60 Hz V DC kg
90 275 125 250 100...250 100...250 1 1 AF190-30-11-33 1SFL487002R3311 3.000
250...500 250...500 1 1 AF190-30-11-34 1SFL487002R3411 3.000
110 350 150 300 100...250 100...250 1 1 AF205-30-11-33 1SFL527002R3311 3.000
250...500 250...500 1 1 AF205-30-11-34 1SFL527002R3411 3.000
200
400
AF265-30-11-33
1SFL547002R3311
4.640
1 1
350
100...250
100...250
132
1SFC101258V0001 160 500 250 400 250...500 250...500 1 1 AF265-30-11-34 1SFL547002R3411 4.640
1 1
AF305-30-11-33
100...250
100...250
1SFL587002R3311
4.640
100...250
1 1
1SFL607002R3311
4.640
200 600 300 520 250...500 250...500 1 1 AF305-30-11-34 1SFL587002R3411 4.640
AF370-30-11-33
100...250
AF370-30-11
250...500 250...500 1 1 AF370-30-11-34 1SFL607002R3411 4.640
(1) For other auxiliary contacts arrangements, please contact your ABB local sales organization.
AF190 ... AF370 are equipped with low voltage inputs for control, for example by a PLC.
Control inputs

A
10 0.39" 140 5.51" 191 7.52"
SECTION B-B
19.5 0.77" ø 10.5 0.41" 35.5 1.40" 5 0.20"
B 165.5 6.49"
10 0.39" 105 4.13" ø 8.5 0.33" 35.5 1.40" 5 0.20"
94.7 3.73" 33.4 1.31"
83.5 3.29" 29.5 1.16"
196 7.72" 225 8.86"

35 1.38" 43.75 1.72"
AF190, AF205 AF265, AF305, AF370 1SFC101167C0201 - Rev. B

Main dimensions mm, inches
