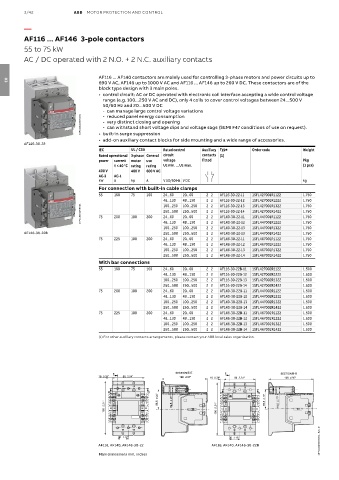

Page 116 - Motor protection and control Manual motor starters, contactors and overload relays

3/42 ABB MOTOR PROTECTION AND CONTROL

—

AF116 ... AF146 3-pole contactors
55 to 75 kW
AC / DC operated with 2 N.O. + 2 N.C. auxiliary contacts

AF116 ... AF140 contactors are mainly used for controlling 3-phase motors and power circuits up to
690 V AC, AF146 up to 1000 V AC and AF116 ... AF146 up to 260 V DC. These contactors are of the
03
block type design with 3 main poles.
• control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage
range (e.g. 100...250 V AC and DC), only 4 coils to cover control voltages between 24...500 V
50/60 Hz and 20...500 V DC
- can manage large control voltage variations
- reduced panel energy consumption
1SFC101009V0001 - very distinct closing and opening
- can withstand short voltage dips and voltage sags (SEMI F47 conditions of use on request).
• built-in surge suppression
• add-on auxiliary contact blocks for side mounting and a wide range of accessories.
AF146-30-22
IEC UL / CSA Rated control Auxiliary Type Order code Weight
Rated operational 3-phase General circuit contacts (1)
power current motor use voltage fitted Pkg
θ ≤ 40 °C rating rating Uc min. ... Uc max. (1 pce)
400 V 480 V 600 V AC
AC-3 AC-1
kW A hp A V 50/60 Hz V DC kg
For connection with built-in cable clamps
55 160 75 160 24...60 20...60 2 2 AF116-30-22-11 1SFL427001R1122 1.750
48...130 48...130 2 2 AF116-30-22-12 1SFL427001R1222 1.750
2 2
1SFC101010V0001 75 200 100 200 250...500 250...500 2 2 AF116-30-22-14 1SFL427001R1422 1.750
100...250
1.750
1SFL427001R1322
AF116-30-22-13
100...250
24...60
1SFL447001R1122
1.750
AF140-30-22-11
20...60
2 2
48...130
100...250
100...250 48...130 2 2 AF140-30-22-12 1SFL447001R1222 1.750
1SFL447001R1322
1.750
2 2
AF140-30-22-13
AF146-30-22B 250...500 250...500 2 2 AF140-30-22-13 1SFL447001R1422 1.750
75 225 100 200 24...60 20...60 2 2 AF146-30-22-11 1SFL467001R1122 1.750
48...130 48...130 2 2 AF146-30-22-12 1SFL467001R1222 1.750
100...250 100...250 2 2 AF146-30-22-13 1SFL467001R1322 1.750
250...500 250...500 2 2 AF146-30-22-14 1SFL467001R1422 1.750
With bar connections
55 160 75 160 24...60 20...60 2 2 AF116-30-22B-11 1SFL427002R1122 1.500
48...130 48...130 2 2 AF116-30-22B-12 1SFL427002R1222 1.500
100...250 100...250 2 2 AF116-30-22B-13 1SFL427002R1322 1.500
250...500 250...500 2 2 AF116-30-22B-14 1SFL427002R1422 1.500
75 200 100 200 24...60 20...60 2 2 AF140-30-22B-11 1SFL447002R1122 1.500
48...130 48...130 2 2 AF140-30-22B-12 1SFL447002R1222 1.500
100...250 100...250 2 2 AF140-30-22B-13 1SFL447002R1322 1.500
250...500 250...500 2 2 AF140-30-22B-14 1SFL447002R1422 1.500
75 225 100 200 24...60 20...60 2 2 AF146-30-22B-11 1SFL467002R1122 1.500
48...130 48...130 2 2 AF146-30-22B-12 1SFL467002R1222 1.500
100...250 100...250 2 2 AF146-30-22B-13 1SFL467002R1322 1.500
250...500 250...500 2 2 AF146-30-22B-14 1SFL467002R1422 1.500
(1) For other auxiliary contacts arrangements, please contact your ABB local sales organization.
E SECTION E-E E SECTION E-E
10 0.39" 90 3.54" 126 4.96" 10 0.39" 90 3.54" 126 4.96"
D D D D
55.5 0.22" 19.5 4.96" 55.5 2.18" 19.5 0.77"
150 5.91" 150 5.91"

1SFC101092C0201 - Rev. D
30 1.18" 30 1.18"
AF116, AF140, AF146-30-22 AF116, AF140, AF146-30-22B
Main dimensions mm, inches
