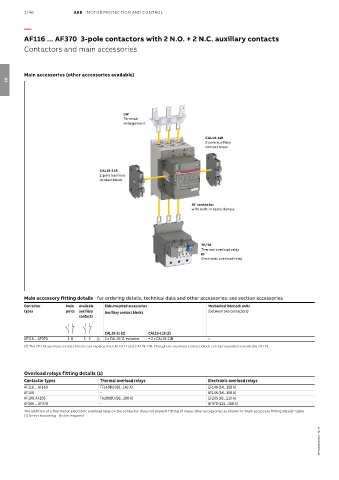

Page 120 - Motor protection and control Manual motor starters, contactors and overload relays

3/46 ABB MOTOR PROTECTION AND CONTROL

—

AF116 ... AF370 3-pole contactors with 2 N.O. + 2 N.C. auxiliary contacts
Contactors and main accessories

Main accessories (other accessories available)
03

LW
Terminal
enlargement

CAL19-11B
2-pole auxiliary
contact block

CAL19-11B
2-pole auxiliary
contact block

AF contactor
with built-in cable clamps

TF/TA
Thermal overload relay
EF
Electronic overload relay

Main accessory fitting details - for ordering details, technical data and other accessories: see section accessories
Contactor Main Available Side-mounted accessories Mechanical interlock units
types poles auxiliary Auxiliary contact blocks (between two contactors)
contacts

CAL19-11 (2) CAL19-11B (2)
AF116 ... AF370 3 0 2 2 2 x CAL19-11 included + 2 x CAL19-11B –
(2) The CEL19 auxiliary contact blocks can replace the CAL19-11 and CAL19-11B. Though, no auxiliary contact block can be mounted outside the CEL19.

Overload relays fitting details (1)
Contactor types Thermal overload relays Electronic overload relays
AF116 ... AF140 TF140DU (66...142 A) EF146 (54...150 A)
AF146 – EF146 (54...150 A)
AF190, AF205 TA200DU (66...200 A) EF205 (63...210 A)
AF265 ... AF370 – EF370 (115...380 A)
The addition of a thermal or electronic overload relay on the contactor does not prevent fitting of many other accessories as shown in "Main accessory fitting details" table.
(1) Direct mounting - No kit required.

1SFC101133C0201 - Rev. B
