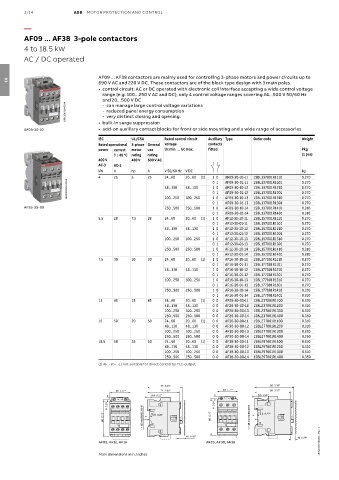

Page 88 - Motor protection and control Manual motor starters, contactors and overload relays

3/14 ABB MOTOR PROTECTION AND CONTROL

—
AF09 ... AF38 3-pole contactors

4 to 18.5 kW
AC / DC operated

AF09 ... AF38 contactors are mainly used for controlling 3-phase motors and power circuits up to
690 V AC and 220 V DC. These contactors are of the block type design with 3 main poles.
03
• control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage
range (e.g. 100...250 V AC and DC), only 4 control voltage ranges covering 24...500 V 50/60 Hz
and 20...500 V DC
1SBC101011V0014 - reduced panel energy consumption
- can manage large control voltage variations
- very distinct closing and opening.

• add-on auxiliary contact blocks for front or side mounting and a wide range of accessories.
AF09-30-10 • built-in surge suppression
IEC UL/CSA Rated control circuit Auxiliary Type Order code Weight
Rated operational 3-phase General voltage contacts
power current motor use Uc min. … Uc max. fitted Pkg
θ ≤ 40 °C rating rating (1 pce)
400 V 480 V 600 V AC
AC-3 AC-1
kW A hp A V 50/60 Hz V DC kg
4 25 5 25 24...60 20...60 (1) 1 0 AF09-30-10-11 1SBL137001R1110 0.270
1SBC101001V0014 48...130 48...130 1 0 AF09-30-10-12 1SBL137001R1210 0.270
1SBL137001R1101
AF09-30-01-11
0.270
0 1
AF09-30-01-12
0 1
1SBL137001R1201
0.270
100...250
1 0
100...250
0 1 AF09-30-10-13 1SBL137001R1310 0.270
AF09-30-01-13
1SBL137001R1301
0.270
AF26-30-00 250...500 250...500 1 0 AF09-30-10-14 1SBL137001R1410 0.310
0 1 AF09-30-01-14 1SBL137001R1401 0.310
5.5 28 7.5 28 24...60 20...60 (1) 1 0 AF12-30-10-11 1SBL157001R1110 0.270
0 1 AF12-30-01-11 1SBL157001R1101 0.270
48...130 48...130 1 0 AF12-30-10-12 1SBL157001R1210 0.270
0 1 AF12-30-01-12 1SBL157001R1201 0.270
100...250 100...250 1 0 AF12-30-10-13 1SBL157001R1310 0.270
0 1 AF12-30-01-13 1SBL157001R1301 0.270
250...500 250...500 1 0 AF12-30-10-14 1SBL157001R1410 0.310
0 1 AF12-30-01-14 1SBL157001R1401 0.310
7.5 30 10 30 24...60 20...60 (1) 1 0 AF16-30-10-11 1SBL177001R1110 0.270
0 1 AF16-30-01-11 1SBL177001R1101 0.270
48...130 48...130 1 0 AF16-30-10-12 1SBL177001R1210 0.270
0 1 AF16-30-01-12 1SBL177001R1201 0.270
100...250 100...250 1 0 AF16-30-10-13 1SBL177001R1310 0.270
0 1 AF16-30-01-13 1SBL177001R1301 0.270
250...500 250...500 1 0 AF16-30-10-14 1SBL177001R1410 0.310
0 1 AF16-30-01-14 1SBL177001R1401 0.310
11 45 15 45 24...60 20...60 (1) 0 0 AF26-30-00-11 1SBL237001R1100 0.310
48...130 48...130 0 0 AF26-30-00-12 1SBL237001R1200 0.310
100...250 100...250 0 0 AF26-30-00-13 1SBL237001R1300 0.310
250...500 250...500 0 0 AF26-30-00-14 1SBL237001R1400 0.350
15 50 20 50 24...60 20...60 (1) 0 0 AF30-30-00-11 1SBL277001R1100 0.310
48...130 48...130 0 0 AF30-30-00-12 1SBL277001R1200 0.310
100...250 100...250 0 0 AF30-30-00-13 1SBL277001R1300 0.310
250...500 250...500 0 0 AF30-30-00-14 1SBL277001R1400 0.350
18.5 50 25 50 24...60 20...60 (1) 0 0 AF38-30-00-11 1SBL297001R1100 0.310
48...130 48...130 0 0 AF38-30-00-12 1SBL297001R1200 0.310
100...250 100...250 0 0 AF38-30-00-13 1SBL297001R1300 0.310
250...500 250...500 0 0 AF38-30-00-14 1SBL297001R1400 0.350
(1) AF..-30-..-11 not suitable for direct control by PLC-output.
77 3.03" 86 3.39"
35 1.38"
45 1.77" 71 2.80" 45 1.77" 2 x 80 3.15" 35 1.38" 2 x
ø 4.2 0.17"
5.5 0.22" M4 8-32 UNC 5.5 0.22" ø 4.2 0.17" M4 8-32 UNC
6 0.24" 6 0.24"
80 3.15" 35 mm EN/IEC 60715 5.5 0.22" 80 3.15" 60 2.36" 70 2.76" 35 mm EN/IEC 60715 5.5 0.22" 60 2.36" 70 2.76"
5 0.20" 5 0.20"
10 0.39" 10 0.39"
5 0.20" 5 0.20"
AF09, AF12, AF16 AF26, AF30, AF38 1SBC101371S0201 - Rev. D
Main dimensions mm, inches
