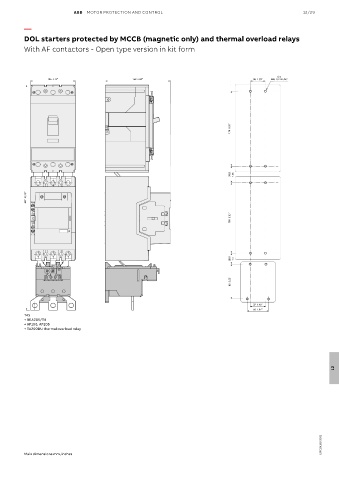

DOL starters protected by MCCB (magnetic only) and thermal overload relays
With AF contactors - Open type version in kit form

12 x
105 4.13" 152 5.98" 35 1.39" M5 10-24 UNC

176 6.93"

39.5 1.56"

527 20.75"

165 6.50"

25.5 1.0"

82 3.23"

37 1.46"
50 1.97"
T4S
+ BEA205/T4
+ AF190, AF205
+ TA200DU thermal overload relay

12

1SFC101191C0201

Main dimensions mm, inches
