DOL starters protected by MCCB (magnetic only) and electronic overload relays
With AF contactors - Open type version in kit form

4 x
105 4.13" 152 5.98" 35 1.39" M4 8-32 UNC

139 5.47"

41 1.61"

517.5 20.37" 165 6.50"

20.5 0.81"

112 4.42"

8 x
M5 10-24 UNC
XT4S
+ BEA205/XT4
+ AF190, AF205
+ EF205 electronic overload relay

12

1SFC101193C0201

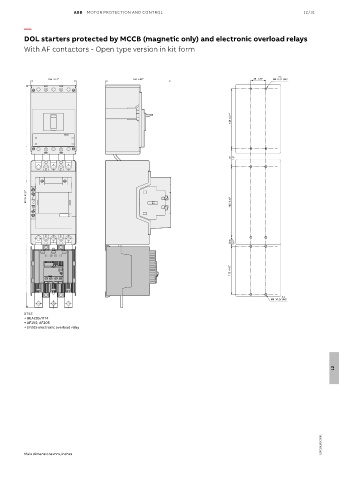

Main dimensions mm, inches
