ABB MOTOR PROTECTION AND CONTROL 12/35

—

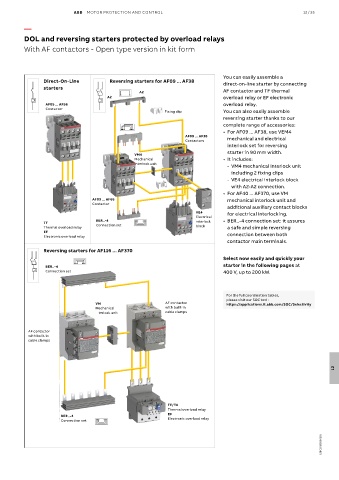

DOL and reversing starters protected by overload relays
With AF contactors - Open type version in kit form

You can easily assemble a
Direct-On-Line Reversing starters for AF09 ... AF38 direct-on-line starter by connecting
starters
A2 AF contactor and TF thermal
A2 overload relay or EF electronic
AF09 ... AF96 overload relay.
Contactor
Fixing clip You can also easily assemble
reversing starter thanks to our
complete range of accessories:
• For AF09 ... AF38, use VEM4
AF09 ... AF38 mechanical and electrical
Contactors
interlock set for reversing
starter in 90 mm width.
VM4
Mechanical • It includes:
interlock unit
- VM4 mechanical interlock unit
including 2 fixing clips
- VE4 electrical interlock block
with A2-A2 connection.
• For AF40 ... AF370, use VM
AF09 ... AF65 mechanical interlock unit and
Contactor
additional auxiliary contact blocks
VE4 for electrical interlocking.
Electrical
BER..-4 interlock • BER..-4 connection set: it assures
TF Connection set
Thermal overload relay block a safe and simple reversing
EF connection between both
Electronic overload relay
contactor main terminals.
Reversing starters for AF116 ... AF370
Select now easily and quickly your
BER..-4 starter in the following pages at
Connection set 400 V, up to 200 kW.

For the full coordination tables,
please visit our SOC tool :
VM AF contactor https://applications.it.abb.com/SOC/Selectivity
Mechanical with built-in
interlock unit cable clamps

AF contactor
with built-in
cable clamps

12

TF/TA
Thermal overload relay
EF
BER..-4
Connection set Electronic overload relay

1SBC101920S0201
