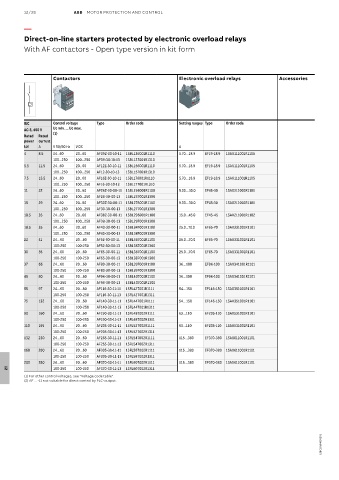

P. 872

12/38            ABB  MOTOR PROTECTION AND CONTROL

          —

          Direct-on-line starters protected by electronic overload relays
          With AF contactors - Open type version in kit form




                    Contactors                                  Electronic overload relays         Accessories








          IEC       Control voltage   Type   Order code         Setting ranges Type  Order code
          AC-3, 400 V  Uc min. ... Uc max.
          Rated   Rated    (1)
          power  current
          kW   A    V 50/60 Hz  V DC                            A
          4    8.5  24...60   20...60  AF09Z-30-10-11  1SBL136001R1110  5.70…18.9  EF19-18.9  1SAX111001R1105
                    100...250  100...250  AF09-30-10-13  1SBL137001R1310
          5.5  11.5  24...60   20...60  AF12Z-30-10-11  1SBL156001R1110  5.70…18.9  EF19-18.9  1SAX111001R1105
                    100...250  100...250  AF12-30-10-13  1SBL157001R1310
          7.5  15.5  24...60   20...60  AF16Z-30-10-11  1SBL176001R1110  5.70…18.9  EF19-18.9  1SAX111001R1105
                    100...250  100...250  AF16-30-10-13  1SBL177001R1310
          11   22   24...60   20...60  AF26Z-30-00-11 1SBL236001R1100  9.00…30.0  EF45-30  1SAX211001R1101
                    100...250  100...250  AF26-30-00-13  1SBL237001R1300
          15   29   24...60   20...60  AF30Z-30-00-11 1SBL276001R1100  9.00…30.0  EF45-30  1SAX211001R1101
                    100...250  100...250  AF30-30-00-13  1SBL277001R1300
         18.5  35   24...60   20...60  AF38Z-30-00-11 1SBL296001R1100  15.0…45.0  EF45-45  1SAX211001R1102
                    100...250  100...250  AF38-30-00-13  1SBL297001R1300
         18.5  35   24...60   20...60  AF40-30-00-11  1SBL347001R1100  25.0...70.0  EF65-70  1SAX331001R1101
                    100...250  100...250  AF40-30-00-13  1SBL347001R1300
         22    41   24…60   20…60  AF52-30-00-11  1SBL367001R1100  25.0…70.0  EF65-70  1SAX331001R1101
                    100-250  100-250  AF52-30-00-13  1SBL367001R1300
         30    55   24…60   20…60  AF65-30-00-11  1SBL387001R1100  25.0…70.0  EF65-70  1SAX331001R1101
                    100-250  100-250  AF65-30-00-13  1SBL387001R1300
         37    66   24…60   20…60  AF80-30-00-11  1SBL397001R1100  36…100  EF96-100  1SAX341001R1101
                    100-250  100-250  AF80-30-00-13  1SBL397001R1300
         45    80   24…60   20…60  AF96-30-00-11  1SBL407001R1100  36…100  EF96-100  1SAX341001R1101
                    100-250  100-250  AF96-30-00-13  1SBL407001R1300
         55    97   24…60   20…60  AF116-30-11-11  1SFL427001R1111  54…150  EF146-150  1SAX351001R1101
                    100-250  100-250  AF116-30-11-13  1SFL427001R1311
         75    132  24…60   20…60  AF140-30-11-11  1SFL447001R1111  54…150  EF146-150  1SAX351001R1101
                    100-250  100-250  AF140-30-11-13  1SFL447001R1311
         90    160  24…60   20…60  AF190-30-11-11  1SFL487002R1111  63…110  EF205-110  1SAX531001R1101
                    100-250  100-250  AF190-30-11-13  1SFL487002R1311
         110   195  24…60   20…60  AF205-30-11-11  1SFL527002R1111  63…110  EF205-110  1SAX531001R1101
                    100-250  100-250  AF205-30-11-13  1SFL527002R1311
         132   230  24…60   20…60  AF265-30-11-11  1SFL547002R1111  115…380  EF370-380  1SAX611001R1101
                    100-250  100-250  AF265-30-11-13  1SFL547002R1311
         160   280  24…60   20…60  AF305-30-11-11  1SFL587002R1111  115…380  EF370-380  1SAX611001R1101
                    100-250  100-250  AF305-30-11-13  1SFL587002R1311
         200   350  24…60   20…60  AF370-30-11-11  1SFL607002R1111  115…380  EF370-380  1SAX611001R1101
                    100-250  100-250  AF370-30-11-13  1SFL607002R1311
   12
          (1) For other control voltages, see "Voltage code table".
          (2) AF ... -11 not suitable for direct control by PLC-output.










                                                                                                                  1SBC101948S0201
