ABB MOTOR PROTECTION AND CONTROL 12/71

—

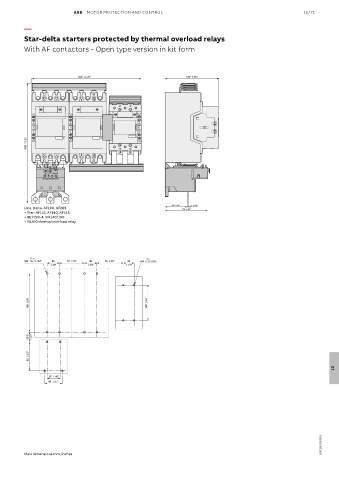

Star-delta starters protected by thermal overload relays
With AF contactors - Open type version in kit form

310 12.20" 152 5.98"

339 13.35"

62 2.44" 4 0.16"
Line, Delta: AF190, AF205 126 4.96"
+ Star: AF116, AF140, AF146
+ BEY190-4, VM140/190
+ TA200 thermal overload relay

12 x 4 x
M5 10-24 UNC 35 70 2.76" 35 75 2.95" 30 M4 8-32 UNC
1.38" 1.38" 1.18"

165 6.50" 100 3.94"

25.5 1.00"

82 3.23"

12
37 1.46"
50 1.97"

1SFC101171C0201

Main dimensions mm, inches
