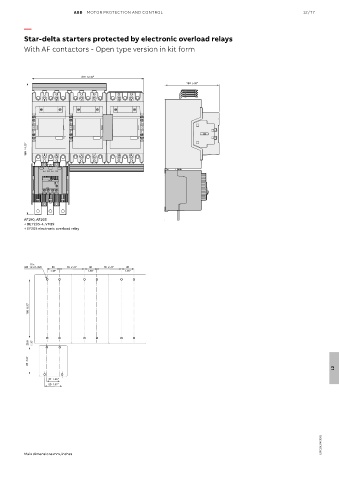

Star-delta starters protected by electronic overload relays
With AF contactors - Open type version in kit form

315 12.40"
152 5.98"

369 14.53"

AF190, AF205
+ BEY205-4, VM19
+ EF205 electronic overload relay

16 x
M5 10-24 UNC 35 70 2.76" 35 70 2.76" 35
1.38" 1.38" 1.38"

165 6.50"

25.5 1.00"

82 3.23"
12

37 1.46"
50 1.97"

1SFC101174C0201

Main dimensions mm, inches
