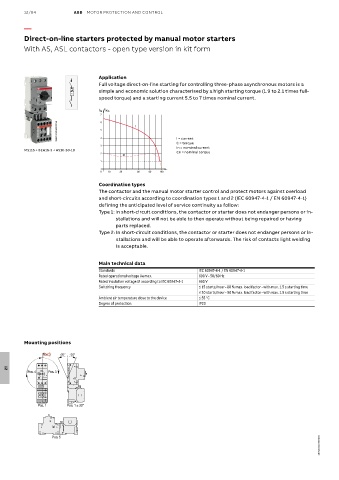

12/84 ABB MOTOR PROTECTION AND CONTROL

—
Direct-on-line starters protected by manual motor starters

With AS, ASL contactors - open type version in kit form

Application
Full voltage direct-on-line starting for controlling three-phase asynchronous motors is a
simple and economic solution characterised by a high starting torque (1.9 to 2.1 times full-
I >
speed torque) and a starting current 5.5 to 7 times nominal current.

I C
/In /Cn
7 6
1SBC101030F0014 5 I

I = current
4
C = torque
3 In = nominal current
MS116 + BEA16-3 + AS16-30-10
2 Cn = nominal torque
C
1
0 10 30 60 80 100
Coordination types
The contactor and the manual motor starter control and protect motors against overload
and short-circuits according to coordination types 1 and 2 (IEC 60947-4-1 / EN 60947-4-1)
defining the anticipated level of service continuity as follow:
Type 1: In short-circuit conditions, the contactor or starter does not endanger persons or in-
stallations and will not be able to then operate without being repaired or having
parts replaced.
Type 2: In short-circuit conditions, the contactor or starter does not endanger persons or in-
stallations and will be able to operate afterwards. The risk of contacts light welding
is acceptable.

Main technical data
Standards IEC 60947-4-1 / EN 60947-4-1
Rated operational voltage Ue max. 690 V - 50/60 Hz
Rated insulation voltage Ui according to IEC 60947-4-1 690 V
Switching frequency ≤ 15 starts/hour - 80 % max. load factor - with max. 1.5 s starting time
≤ 30 starts/hour - 50 % max. load factor - with max. 1.5 s starting time
Ambient air temperature close to the device ≤ 55 °C
Degree of protection IP20

Mounting positions

Pos. 2Pos. Posos +30° -30°

Pos. 4 Pos. 3
12

Pos. 1 Pos. 1 ± 30°

1SBC101272S0201
Pos. 5
