ABB  MOTOR PROTECTION AND CONTROL                                               12/89

          —

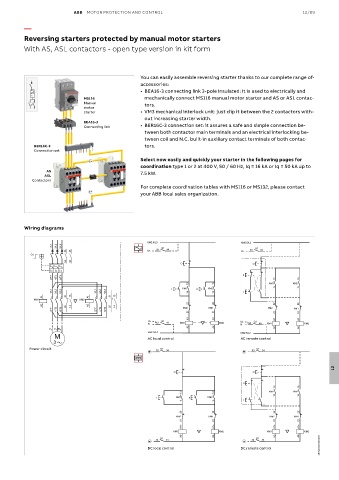

          Reversing starters protected by manual motor starters

          With AS, ASL contactors - open type version in kit form




                                                  You can easily assemble reversing starter thanks to our complete range of-
                                                  accessories:
                                                  •  BEA16-3 connecting link 3-pole insulated: it is used to electrically and
            I >
                              MS116                 mechanically connect MS116 manual motor starter and AS or ASL contac-
                              Manual                tors.
                              motor
                              starter             •  VM3 mechanical interlock unit: just clip it between the 2 contactors with-
                                                    out increasing starter width.
                              BEA16-3
                              Connecting link     •  BER16C-3 connection set: it assures a safe and simple connection be-
                                                    tween both contactor main terminals and an electrical interlocking be-
                                                    tween coil and N.C. built-in auxiliary contact terminals of both contac-
             BER16C-3                               tors.
             Connection set
                                                  Select now easily and quickly your starter in the following pages for
                                                    coordination type 1 or 2 at 400 V, 50 / 60 Hz, Iq = 16 kA or Iq = 50 kA up to
                 AS
                 ASL                              7.5 kW.
            Contactors
                                                  For complete coordination tables with MS116 or MS132, please contact
                                                  your ABB local sales organization.





          Wiring diagrams


                                                     KM2:5/L3                         KM2:5/L3
                   1/L1  3/L2  5/L3                       Q1                               Q1
                        33  43                       Us  33  34                       Us  33  34
            Q1
                        34  44
                                                                O                         O
                   I> I> I>
                   2/T1  4/T2  6/T3                                                   II          13      13
                                                                   13       13                 KM1      KM2
                                                             I   KM1  II   KM2                    14      14
                   1/L1  3/L2  5/L3  1/L1  3/L2  5/L3              14       14        I
                A1      21  13  A1      21  13
             KM1             KM2
                                                                   22       22                    22      22
                A2      22  14  A2      22  14

                   2/T1  4/T2  6/T3  2/T1  4/T2  6/T3            KM2      KM1                  KM2      KM1
                                                                   21       21                    21      21
                                                                   A1       A1                    A1      A1
                                                     Us  43  Q1  44                  Us   Q1
                                                     N          KM1           KM2    N  43  44  KM1         KM2
                                                                   A2       A2                    A2      A2
                  U 1  V 1 W 1
                                                     KM2:3/L2                        KM2:3/L2
                    M                                AC local control                 AC remote control
                    3
           Power circuit                                 Q1                                Q1
                                                     +  33  34                        +  33  34
                                                                                                                      12
                                                              O                           O
                                                                                       II
                                                                                                  13      13
                                                                 13         13                 KM1      KM2
                                                        I      KM1  II    KM2                     14      14
                                                                 14         14        I
                                                                 22         22                    22      22
                                                               KM2        KM1                   KM2     KM1
                                                                 21         21                    21      21
                                                                 A1+        A1+                   A1+     A1+
                                                              KM1             KM2              KM1          KM2
                                                                 A2-        A2-                   A2-     A2-
                                                     -  43  Q1  44                    -  43  Q1  44
                                                     DC local control                 DC remote control          1SBC101274S0201
