ABB MOTOR PROTECTION AND CONTROL 12/93

—

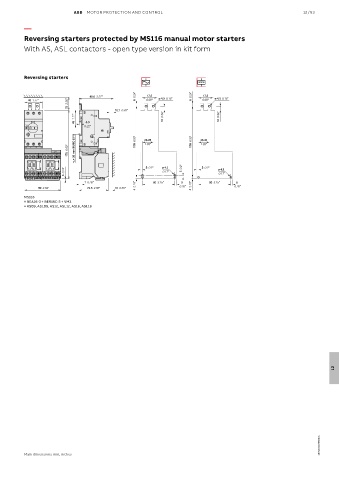

Reversing starters protected by MS116 manual motor starters

With AS, ASL contactors - open type version in kit form

Reversing starters

85.6 3.37" 6 0.24" 17.5 6 0.24" 17.5
75 2.95"
45 1.77" 0.69" ø 4.5 0.18" 0.69" ø 4.5 0.18"
10.1 0.40"
45 1.77" 5.5 10 0.39" 10 0.39"
0.22"

1.03"
1.03"
170 6.69" 35 mm EN/IEC 60715 176 6.93" 26.25 176 6.93" 26.25

3 0.12" 5 0.2" ø 4.2 5 0.2" 5 0.2" ø 4.2
0.17"
0.17"
7 0.28" 80 3.15" 5 80 3.15" 5
90 3.54" 72.5 2.85" 10 0.39" 4 0.16" 0.20" 4 0.16" 0.20"
MS116
+ BEA16-3 + BER16C-3 + VM3
+ AS09, ASL09, AS12, ASL12, AS16, ASL16

12

1SBC101278S0201

Main dimensions mm, inches
