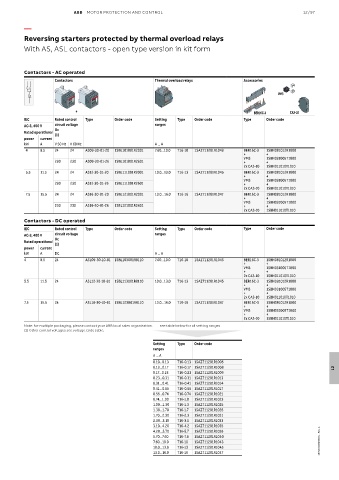

Page 931 - Motor protection and control Manual motor starters, contactors and overload relays

ABB MOTOR PROTECTION AND CONTROL 12/97

—
Reversing starters protected by thermal overload relays

With AS, ASL contactors - open type version in kit form

Contactors - AC operated
Contactors Thermal overload relays Accessories

VM3

+ BER16C-3 CA3-10
IEC Rated control Type Order code Setting Type Order code Type Order code
AC-3, 400 V circuit voltage ranges
Rated operational Uc
(1)
power current
kW A V 50 Hz V 60 Hz A ... A
4 8.5 24 24 AS09-30-01-20 1SBL101001R2001 7.60...10.0 T16-10 1SAZ711201R1043 BER16C-3 1SBN081012R1000
+ +
VM3 1SBN031005T1000
230 230 AS09-30-01-26 1SBL101001R2601 + +
2x CA3-10 1SBN011010T1010
5.5 11.5 24 24 AS12-30-01-20 1SBL111001R2001 10.0...13.0 T16-13 1SAZ711201R1045 BER16C-3 1SBN081012R1000
+ +
VM3 1SBN031005T1000
230 230 AS12-30-01-26 1SBL111001R2601 + +
2x CA3-10 1SBN011010T1010
7.5 15.5 24 24 AS16-30-01-20 1SBL121001R2001 13.0...16.0 T16-16 1SAZ711201R1047 BER16C-3 1SBN081012R1000
+ +
VM3 1SBN031005T1000
230 230 AS16-30-01-26 1SBL121001R2601 + +
2x CA3-10 1SBN011010T1010
Contactors - DC operated
IEC Rated control Type Order code Setting Type Order code Type Order code
AC-3, 400 V circuit voltage ranges
Rated operational Uc
(1)
power current
kW A DC A ... A
4 8.5 24 ASL09-30-10-81 1SBL103001R8110 7.60...10.0 T16-10 1SAZ711201R1043 BER16C-3 1SBN081012R1000
+ +
VM3 1SBN031005T1000
+ +
2x CA3-10 1SBN011010T1010
5.5 11.5 24 ASL12-30-10-81 1SBL113001R8110 10.0...13.0 T16-13 1SAZ711201R1045 BER16C-3 1SBN081012R1000
+ +
VM3 1SBN031005T1000
+ +
2x CA3-10 1SBN011010T1010
7.5 15.5 24 ASL16-30-10-81 1SBL123001R8110 13.0...16.0 T16-16 1SAZ711201R1047 BER16C-3 1SBN081012R1000
+ +
VM3 1SBN031005T1000
+ +
2x CA3-10 1SBN011010T1010
Note: for multiple packaging, please contact your ABB local sales organization. see table below for all setting ranges
(1) Other control voltages see voltage code table.

Setting Type Order code
ranges
A ... A
0.10...0.13 T16-0.13 1SAZ711201R1005
0.13...0.17 T16-0.17 1SAZ711201R1008 12
0.17...0.23 T16-0.23 1SAZ711201R1009
0.23...0.31 T16-0.31 1SAZ711201R1013
0.31...0.41 T16-0.41 1SAZ711201R1014
0.41...0.55 T16-0.55 1SAZ711201R1017
0.55...0.74 T16-0.74 1SAZ711201R1021
0.74...1.00 T16-1.0 1SAZ711201R1023
1.00...1.30 T16-1.3 1SAZ711201R1025
1.30...1.70 T16-1.7 1SAZ711201R1028
1.70...2.30 T16-2.3 1SAZ711201R1031
2.30...3.10 T16-3.1 1SAZ711201R1033
3.10...4.20 T16-4.2 1SAZ711201R1035
4.20...5.70 T16-5.7 1SAZ711201R1038
5.70...7.60 T16-7.6 1SAZ711201R1040
7.60...10.0 T16-10 1SAZ711201R1043 1SBC101280S0201 - Rev. A
10.0...13.0 T16-13 1SAZ711201R1045
13.0...16.0 T16-16 1SAZ711201R1047
