12/92 ABB MOTOR PROTECTION AND CONTROL

—

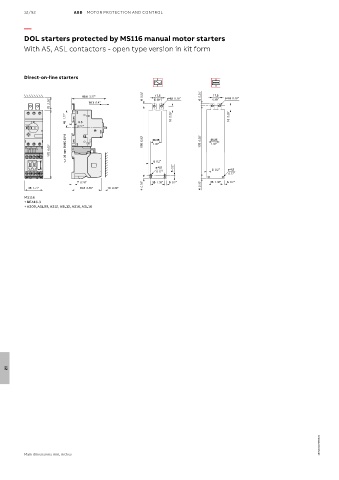

DOL starters protected by MS116 manual motor starters

With AS, ASL contactors - open type version in kit form

Direct-on-line starters

17.5
85.6 3.37" 6 0.24" 17.5 ø 4.5 0.18" 6 0.24" 0.69" ø 4.5 0.18"
75 2.95" 10.1 0.4"
0.69"
45 1.77" 5.5 10 0.39" 10 0.39"
0.22"

1.03"
1.03"
170 6.69" 35 mm EN/IEC 60715 176 6.93" 26.25 176 6.93" 26.25
5 0.2"
ø 4.2 5 0.2" 5 0.2" ø 4.2
0.17"
0.17"
7 0.28" 35 1.38" 5 0.2" 35 1.38" 5 0.2"
45 1.77" 72.5 2.85" 10 0.39" 4 0.16" 4 0.16"
MS116
+ BEA16-3
+ AS09, ASL09, AS12, ASL12, AS16, ASL16

12

1SBC101279S0201

Main dimensions mm, inches
