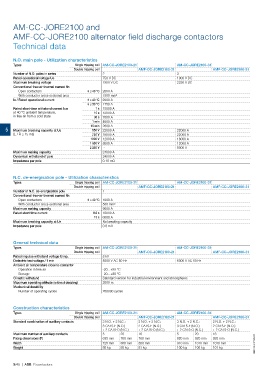

AM-CC-JORE2100 and
AMF-CC-JORE2100 alternator field discharge contactors
Technical data

N.O. main pole - Utilization characteristics

Types Single tripping coil AM-CC-JORE2100-21 AM-CC-JORE2100-31

Double tripping coil AMF-CC-JORE2100-21 AMF-CC-JORE2100-31
2 3
Number of N.O. poles in series

Rated operational voltage Ue 750 V DC 1000 V DC

Maximum breaking voltage 1500 V DC 2250 V DC

Conventional free-air thermal current Ith

Open contactors θ ≤ 40 °C 2000 A
With conductor cross-sectional area 1500 mm²

Ie / Rated operational current θ ≤ 40 °C 2000 A
Rated short-time withstand current Icw θ ≤ 50 °C 1750 A
at 40 °C ambient temperature, 15000 A
in free air from a cold state 1s 12000 A
7000 A
10 s

30 s

1 min 4600 A

5 Maximum breaking capacity at Ue 15 min 2600 A 22000 A
(L / R ≤ 15 ms) 550 V 22000 A 22000 A
750 V 18000 A

1000 V 12000 A 18000 A

1 500 V 8000 A 12000 A

2 250 V - 8000 A

Maximum making capacity 24000 A

Dynamical withstand of pole 24000 A

Impedance per pole 0.10 mΩ

N.C. de-energisation pole - Utilization characteristics

Types Single tripping coil AM-CC-JORE2100-21 AM-CC-JORE2100-31

Double tripping coil AMF-CC-JORE2100-21 AMF-CC-JORE2100-31

Number of N.C. de-energisation pole 1

Conventional free-air thermal current Ith

Open contactors θ ≤ 40 °C 1000 A
With conductor cross-sectional area 500 mm²

Maximum making capacity 9000 A

Rated short time current 0.5 s 10000 A

15 s 6000 A

Maximum breaking capacity at Ue No breaking capacity

Impedance per pole 0.8 mΩ

General technical data

Types Single tripping coil AM-CC-JORE2100-21 AM-CC-JORE2100-31

Double tripping coil AMF-CC-JORE2100-21 AMF-CC-JORE2100-31

Rated impulse withstand voltage Uimp. 8 kV

Dielectric test voltage / 1 min 5500 V AC 50 Hz 6000 V AC 50 Hz

Ambient air temperature close to contactor

Operation in free air -20…+55 °C
-20…+80 °C
Storage Standard version for industrial environment and atmospheres
2000 m
Climatic withstand

Maximum operating altitude (without derating)

Mechanical durability

Number of operating cycles 200000 cycles

Construction characteristics

Types Single tripping coil AM-CC-JORE2100-21 AM-CC-JORE2100-31

Double tripping coil AMF-CC-JORE2100-21 AMF-CC-JORE2100-31

Standard combination of auxiliary contacts 3 N.O. + 2 N.C.: 2 N.O. + 2 N.C.: 3 N.O. + 2 N.C.: 2 N.O. + 2 N.C.:

3 CA15-F (N.O.) 2 CA15-F (N.O.) 3 CA15-F (N.O.) 2 CA15-F (N.O.)
+ 2 CA15-O (N.C.) + 2 CA15-O (N.C.) + 2 CA15-O (N.C.) + 2 CA15-O (N.C.)

Maximum number of auxiliary contacts 5 20 16 5 20 16 1SBC104107S0201
Fixing dimensions (F)
635 mm 760 mm 760 mm 820 mm 920 mm 920 mm
Width
Weight 725 mm 850 mm 850 mm 910 mm 1010 mm 1010 mm

80 kg 80 kg 81 kg 100 kg 100 kg 101 kg
