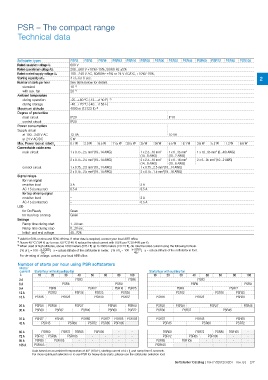

Page 21 - Catalog Softstarters PSR PSE PSTX

PSR – The compact range

Technical data

Softstarter types PSR3 PSR6 PSR9 PSR12 PSR16 PSR25 PSR30 PSR37 PSR45 PSR60 PSR72 PSR85 PSR105
Rated insulation voltage Ui 600 V
Rated operational voltage Ue 208...600 V +10%/-15%, 50/60 Hz ±5%
Rated control supply voltage Us 100...240 V AC, 50/60Hz ±5% or 24 V AC/DC, +10%/-15%,
Starting capacity at Ie 4 x Ie for 6 sec. 2
Number of starts per hour See table below for details
standard 10 1)
with aux. fan 20 1)
Ambient temperature
during operation -25...+60 ºC (-13...+140 F) 2)
during storage -40...+70 ºC (-40...+158 F)
3)
Maximum altitude 4000 m (13123 ft)
Degree of protection
main circuit IP20 IP10
control circuit IP20
Power consumption
Supply circuit
at 100...240 V AC 12 VA 10 VA
at 24 V AC/DC 5 W
Max. Power loss at rated I e 0.7 W 2.9 W 6.5 W 11.5 W 20.5 W 25 W 36 W 5.5 W 8.1 W 3.6 W 5.2 W 7.2 W 6.6 W
Connectable cable area
main circuit 1 x 0.75...2.5 mm (19...14 AWG) 1 x 2.5...10 mm 2 1 x 6...35 mm 2 1 x 10...95 mm (8...4/0 AWG)
2
2
(14...8 AWG) (10...2 AWG)
2 x 0.75...2.5 mm (19...14 AWG) 2 x 2.5...10 mm 2 2 x 6...16 mm 2 2 x 6...35 mm (10...2 AWG)
2
2
(14...8 AWG) (10...6 AWG)
control circuit 1 x 0.75...2.5 mm (19...14 AWG) 1 x 0.75...2.5 mm (19...14 AWG)
2
2
2 x 0.75...2.5 mm (19...14 AWG) 2 x 0.75...1.5 mm (19...16 AWG)
2
2
Signal relays
for run signal
resistive load 3 A 3 A
AC-15 (contactor) 0.5 A 0.5 A
for top of ramp signal
resistive load – 3 A
AC-15 (contactor) – 0.5 A
LED
for On/Ready Green
for Run/Top of ramp Green
Settings
Ramp time during start 1...20 sec.
Ramp time during stop 0...20 sec.
Initial- and end voltage 40...70%
1) Valid for 50% on time and 50% off time. If other data is required, contact your local ABB office.
2) Above 40 ºC (104 F) up to max. 60 ºC (140 F) reduce the rated current with 0.8% per ºC (0.44% per F).
3) When used at high altitudes, above 1000 meters (3281 ft) up to 4000 meters (13123 ft), de-rate the rated current using the following formula.
[ % of I = 100 - x-1000 ] x = actual altitude of the softstarter in meter. [ % of I = 100 - y-3280 ] y = actual altitude of the softstarter in feet.
e 150 e 497
For de-rating of voltage, contact your local ABB office.
Number of starts per hour using PSR softstarters
Motor
current Starts/hour without auxiliary fan Starts/hour with auxiliary fan
Ie 10 20 30 40 50 60 80 100 10 20 30 40 50 60 80 100
3 A PSR3 PSR6 PSR3
6 A PSR6 PSR9 PSR6 PSR9
9 A PSR9 PSR12 PSR16 PSR25 PSR9 PSR12
12 A PSR12 PSR16 PSR25 PSR30 PSR12 PSR16 PSR25
16 A PSR16 PSR25 PSR30 PSR37 PSR16 PSR25 PSR30
25 A PSR25 PSR30 PSR37 PSR45 PSR60 PSR25 PSR30 PSR37 PSR45
30 A PSR30 PSR37 PSR45 PSR60 PSR72 PSR30 PSR37 PSR45
37 A PSR37 PSR45 PSR60 PSR72 PSR85 PSR105 PSR37 PSR45 PSR60
45 A PSR45 PSR60 PSR72 PSR85 PSR105 - PSR45 PSR60 PSR72
60 A PSR60 PSR72 PSR85 PSR105 - - PSR60 PSR72 PSR85 PSR105 -
72 A PSR72 PSR85 PSR105 - - - - PSR72 PSR85 PSR105 - -
85 A PSR85 PSR105 - - - - - PSR85 PSR105 - - - -
105 A PSR105 - - - - - - - PSR105 - - - - - -
Data based on an ambient temperature of 40° (104 F), starting current of 4 x I and ramp time 6 seconds.
e
For more optimized selection or to use PSR for heavy-duty starts, please use the softstarter selection tool.
