PSR – The compact range

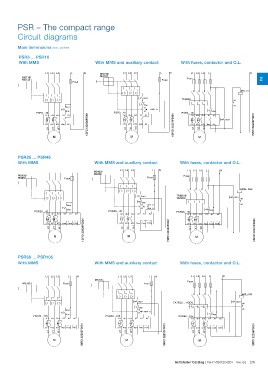

Circuit diagrams
Main dimensions mm, inches
PSR3 ... PSR16
With MMS With MMS and auxiliary contact With fuses, contactor and O.L.
2
1SFC132226F0001 1SFC132227F0001 1SFC132228F0001
PSR25 ... PSR45
With MMS With MMS and auxiliary contact With fuses, contactor and O.L.
1SFC132229F0001 1SFC132230F0001 1SFC132231F0001
PSR60 ... PSR105
With MMS With MMS and auxiliary contact With fuses, contactor and O.L.
1SFC132232F0001 1SFC132233F0001 1SFC132234F0001
