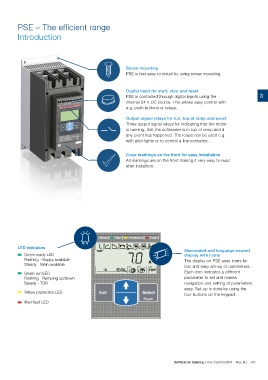

PSE – The efficient range

Introduction

Screw mounting
PSE is fast easy to install by using screw mounting.

Digital input for start, stop and reset
PSE is controlled through digital inputs using the 3
internal 24 V DC source. This allows easy control with
e.g. push buttons or relays.

Output signal relays for run, top of ramp and event
Three output signal relays for indicating that the motor
is running, that the softstarter is in top of ramp and if
any event has happened. The relays can be used e.g.
with pilot lights or to control a line contactor.

Clear markings on the front for easy installation
All markings are on the front making it very easy to read
after installtion.

LED indicators
Illuminated and language-neutral
Green ready LED display with icons
Flashing - Suppy available The display on PSE uses icons for
Steady - Main available
fast and easy set-up of parameters.
Green run LED Each icon indicates a different
Flashing - Ramping up/down parameter to set and makes
Steady - TOR navigation and setting of parameters
easy. Set-up is done by using the
Yellow protection LED
four buttons on the keypad.
Red fault LED
