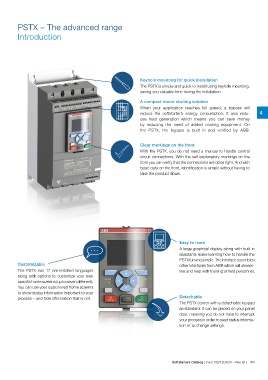

PSTX – The advanced range

Introduction

Keyhole mounting for quick installation
The PSTX is simple and quick to install using keyhole mounting,
saving you valuable time during the installation.
A compact motor starting solution
When your application reaches full speed, a bypass will
reduce the softstarter’s energy consumption. It also redu- 4
ces heat generation which means you can save money
by reducing the need of added cooling equipment. On
the PSTX, the bypass is built in and verified by ABB.

Clear markings on the front
With the PSTX, you do not need a manual to handle control
circuit connections. With the self-explanatory markings on the
front you can verify that the connections are done right. And with
basic data on the front, identification is simple without having to
take the product down.

Easy to learn
A large graphical display along with built-in
assistants make learning how to handle the
PSTX fun and simple. The interface resembles
Customizable other interfaces from ABB which will stream-
The PSTX has 17 pre-installed languages line and help with training of field personnel.
along with options to customize your own
specific home screens (up to seven different).
You can use your customized home screens
to show status information important to your
process – and hide information that is not. Detachable
The PSTX comes with a detachable keypad
as standard. It can be placed on your panel
door, meaning you do not have to interrupt
your process in order to read status informa-
tion or to change settings.
