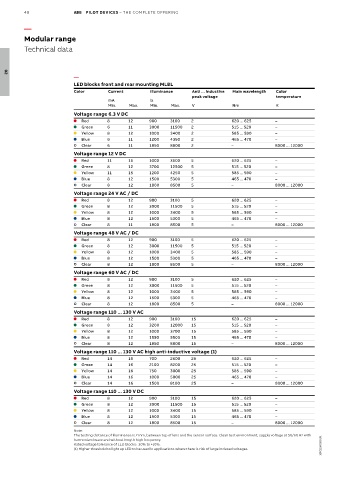

Page 50 - Pilot-Devices-The-complete-offering

48 ABB PILOT DEVICES – THE COMPLETE OFFERING

—

Modular range
Technical data

—
02
LED blocks front and rear mounting MLBL
Color Current Illuminance Anti ... inductive Main wavelength Color
peak voltage temperature
mA lx
Min. Max. Min. Max. V Nm K
Voltage range 6.3 V DC
l Red 8 12 900 3100 2 620 ... 625 –
l Green 6 11 3000 11500 2 515 ... 520 –
l Yellow 8 12 1000 3400 2 585 ... 590 –
l Blue 6 11 1200 4350 2 465 ... 470 –
Clear 6 11 1850 8800 2 – 8000 ... 12000
Voltage range 12 V DC
l Red 11 15 1000 3500 5 620 ... 625 –
l Green 8 12 3700 12500 5 515 ... 520 –
l Yellow 11 15 1200 4250 5 585 ... 590 –
l Blue 8 12 1500 5300 5 465 ... 470 –
Clear 8 12 1800 8500 5 – 8000 ... 12000
Voltage range 24 V AC / DC
l Red 8 12 900 3100 5 620 ... 625 –
l Green 8 12 3000 11500 5 515 ... 520 –
l Yellow 8 12 1000 3400 5 585 ... 590 –
l Blue 8 12 1500 5300 5 465 ... 470 –
Clear 8 11 1800 8500 5 – 8000 ... 12000
Voltage range 48 V AC / DC
l Red 8 12 900 3100 5 620 ... 625 –
l Green 8 12 3000 11500 5 515 ... 520 –
l Yellow 8 12 1000 3400 5 585 ... 590 –
l Blue 8 12 1500 5300 5 465 ... 470 –
Clear 8 12 1800 8500 5 – 8000 ... 12000
Voltage range 60 V AC / DC
l Red 8 12 900 3100 5 620 ... 625 –
l Green 8 12 3000 11500 5 515 ... 520 –
l Yellow 8 12 1000 3400 5 585 ... 590 –
l Blue 8 12 1500 5300 5 465 ... 470 –
Clear 8 12 1800 8500 5 – 8000 ... 12000
Voltage range 110 ... 130 V AC
l Red 8 12 900 3100 15 620 ... 625 –
l Green 8 12 3200 12000 15 515 ... 520 –
l Yellow 8 12 1000 3700 15 585 ... 590 –
l Blue 8 12 1550 5500 15 465 ... 470 –
Clear 8 12 1850 8800 15 – 8000 ... 12000
Voltage range 110 ... 130 V AC high anti-inductive voltage (1)
l Red 14 16 700 2600 25 620 ... 625 –
l Green 14 16 2100 8200 25 515 ... 520 –
l Yellow 14 16 750 3000 25 585 ... 590 –
l Blue 14 16 1000 5000 25 465 ... 470 –
Clear 14 16 1500 8100 25 – 8000 ... 12000
Voltage range 110 ... 130 V DC
l Red 8 12 900 3100 15 620 ... 625 –
l Green 8 12 3000 11500 15 515 ... 520 –
l Yellow 8 12 1000 3400 15 585 ... 590 –
l Blue 8 12 1500 5300 15 465 ... 470 –
Clear 8 12 1800 8500 15 – 8000 ... 12000
Note:
The testing distance of illuminance is 2 mm, between top of lens and the sensor surface. Clean test environment, supply voltage at 50/60 Hz with
harmonized wave and without length high frequency.
Rated voltage tolerance of LED blocks: 30% to +10%. 1SFC151031S0201
(1) Higher threshold to light up LED to be used in applications where there is risk of large induced voltages.
