50 ABB PILOT DEVICES – THE COMPLETE OFFERING

—

Modular range

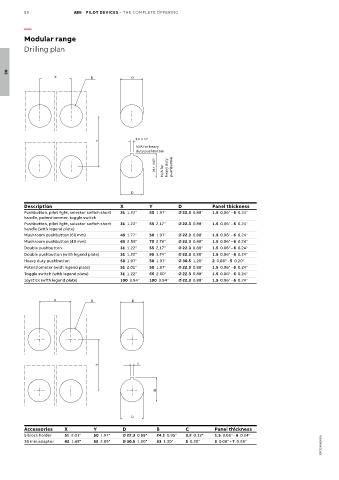

Drilling plan

02
X D D

3.2 0.13"
Y
N/A for heavy
duty pushbutton
24.1 0.95" N/A for heavy duty pushbutton

D
Description X Y D Panel thickness
Pushbutton, pilot light, selector switch short 31 1.22" 50 1.97" Ø 22.3 0.88" 1.5 0.06" - 6 0.24"
handle, potentiometer, toggle switch
Pushbutton, pilot light, selector switch short 31 1.22" 55 2.17" Ø 22.3 0.88" 1.5 0.06" - 6 0.24"
handle (with legend plate)
Mushroom pushbutton (60 mm) 45 1.77" 50 1.97" Ø 22.3 0.88" 1.5 0.06" - 6 0.24"
Mushroom pushbutton (40 mm) 65 2.56" 70 2.76" Ø 22.3 0.88" 1.5 0.06" - 6 0.24"
Double pushbutton 31 1.22" 55 2.17" Ø 22.3 0.88" 1.5 0.06" - 6 0.24"
Double pushbutton (with legend plate) 31 1.22" 95 3.74" Ø 22.3 0.88" 1.5 0.06" - 6 0.24"
Heavy duty pushbutton 50 1.97" 50 1.97" Ø 30.5 1.20" 2 0.08" - 5 0.20"
Potentiometer (with legend plate) 51 2.01" 50 1.97" Ø 22.3 0.88" 1.5 0.06" - 6 0.24"
Toggle switch (with legend plate) 31 1.22" 66 2.60" Ø 22.3 0.88" 1.5 0.06" - 6 0.24"
Joystick (with legend plate) 100 3.94" 100 3.94" Ø 22.3 0.88" 1.5 0.06" - 6 0.24"

X D D

C
Y

B

D
Accessories X Y D B C Panel thickness
5 block holder 51 2.01" 50 1.97" Ø 22.3 0.88" 24.1 0.95" 3.2 0.13" 1.5 0.06" - 6 0.24"
1SFC151085S0201
30 mm adaptor 42 1.65" 52 2.05" Ø 30.5 1.20" 33 1.30" 5 0.20" 2 0.08" - 7 0.28"
