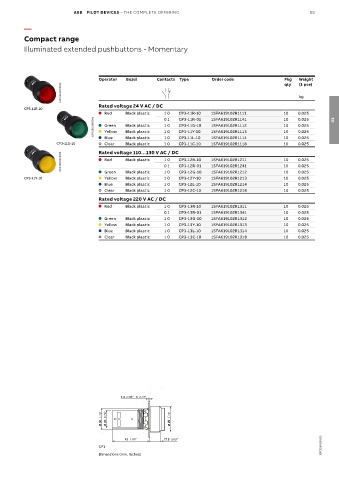

ABB PILOT DEVICES – THE COMPLETE OFFERING 59

—

Compact range
Illuminated extended pushbuttons - Momentary

Operator Bezel Contacts Type Order code Pkg Weight
(1 pce)
qty
1SFC151210V0001 kg
Rated voltage 24 V AC / DC
CP3-11R-10
l Red Black plastic 1 0 CP3-11R-10 1SFA619102R1111 10 0.025
10
1SFA619102R1141
0 1
CP3-11R-01
1SFC151213V0001 l Green Black plastic 1 0 CP3-11G-10 1SFA619102R1112 10 0.025 03
0.025
CP3-11Y-10
1 0
0.025
1SFA619102R1113
10
Black plastic
l Yellow
Black plastic
0.025
1SFA619102R1118
10
1 0
CP3-11C-10
Clear
CP3-11G-10 l Blue Black plastic 1 0 CP3-11L-10 1SFA619102R1114 10 0.025
Rated voltage 110…130 V AC / DC
1SFC151208V0001 l Red Black plastic 1 0 CP3-12R-10 1SFA619102R1211 10 0.025
CP3-12R-01
10
1SFA619102R1241
0 1
0.025
l Yellow
CP3-12Y-10
1SFA619102R1213
10
Black plastic
1 0
0.025
CP3-11Y-10 l Green Black plastic 1 0 CP3-12G-10 1SFA619102R1212 10 0.025
l Blue Black plastic 1 0 CP3-12L-10 1SFA619102R1214 10 0.025
Clear Black plastic 1 0 CP3-12C-10 1SFA619102R1218 10 0.025
Rated voltage 220 V AC / DC
l Red Black plastic 1 0 CP3-13R-10 1SFA619102R1311 10 0.025
0 1 CP3-13R-01 1SFA619102R1341 10 0.025
l Green Black plastic 1 0 CP3-13G-10 1SFA619102R1312 10 0.025
l Yellow Black plastic 1 0 CP3-13Y-10 1SFA619102R1313 10 0.025
l Blue Black plastic 1 0 CP3-13L-10 1SFA619102R1314 10 0.025
Clear Black plastic 1 0 CP3-13C-10 1SFA619102R1318 10 0.025

1.5 0.06" - 6 0.24"

Ø 30 1.18" Ø 20 0.79" Ø 29 1.14"

42 1.65" 17.5 0.69"
CP3 1SFC151041S0201
Dimensions (mm, inches)
