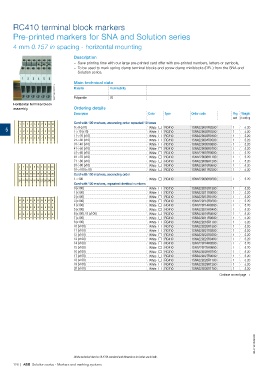

Page 128 - 1SNC160023C0204_Marking_systems_catalog_EN

RC410 terminal block markers
Pre-printed markers for SNA and Solution series

4 mm 0.157 in spacing - horizontal mounting

Description

–– Save printing time with our large pre-printed card offer with pre-printed numbers, letters or symbols,
–– To be used to mark spring clamp terminal blocks and screw clamp miniblocks (DR..) from the SNA and

Solution series.

1SNC160191F0014 Main technical data

Material Flammability

Polyamide V2

Horizontal terminal block Ordering details Color Type Order code Pkg Weight
assembly card (1 card) g
Description RC410
5 RC410
Card with 100 markers, ascending order repeated 10 times RC410
RC410
0->9 (x10) White RC410 1SNA229001R0200 1 5.20
1->10 (x10) White RC410 1SNA229002R0300 1 5.20
11->20 (x10) White RC410 1SNA229003R0400 1 5.20
21->30 (x10) White RC410 1SNA229004R0500 1 5.20
31->40 (x10) White RC410 1SNA229005R0600 1 5.20
41->50 (x10) White RC410 1SNA229006R0700 1 5.20
51->60 (x10) White RC410 1SNA229007R0000 1 5.20
61->70 (x10) White 1SNA229008R1100 1 5.20
71->80 (x10) White RC410 1SNA229009R1200 1 5.20
81->90 (x10) White 1SNA229010R0600 1 5.20
91->100 (x10) White RC410 1SNA229011R2300 1 5.20
RC410
Card with 100 markers, ascending order RC410
RC410
1->100 White RC410 1SNA229030R0200 1 5.20
RC410
Card with 100 markers, repeated identical numbers RC410
RC410
0 (x100) White RC410 1SNA229210R1300 1 5.20
1 (x100) White RC410 1SNA229211R0000 1 5.20
2 (x100) White RC410 1SNA229212R0100 1 5.20
3 (x100) White RC410 1SNA229213R0200 1 5.20
4 (x100) White RC410 1SNA229214R0300 1 5.20
5 (x100) White RC410 1SNA229215R0400 1 5.20
6 (x100) / 9 (x100) White RC410 1SNA229216R0500 1 5.20
7 (x100) White RC410 1SNA229217R0600 1 5.20
8 (x100) White RC410 1SNA229218R1700 1 5.20
10 (x100) White RC410 1SNA229220R1500 1 5.20
RC410 1SNA229221R0200 1 5.20
11 (x100) White RC410 1SNA229222R0300 1 5.20
1SNA229223R0400 1 5.20
12 (x100) White 1SNA229224R0500 1 5.20
13 (x100) White 1SNA229225R0600 1 5.20
14 (x100) White 1SNA229226R0700 1 5.20
15 (x100) White 1SNA229227R0000 1 5.20
16 (x100) White 1SNA229228R1100 1 5.20
17 (x100) White 1SNA229229R1200 1 5.20
18 (x100) White 1SNA229230R1700 1 5.20
19 (x100) White
20 (x100) White

Continue on next page →

1SNC160138S0201

All the technical data for UL/CSA standard and dimensions in inches are in italic.
126 | ABB Solution series - Markers and marking systems
