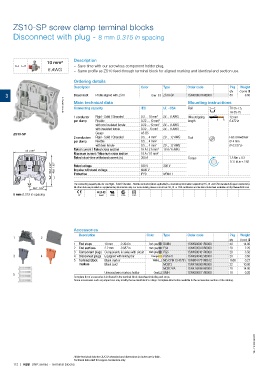

Page 116 - 1SNK160027C0207_SNK Series Terminal Blocks

ZS10-SP screw clamp terminal blocks

Disconnect with plug - 8 mm 0.315 in spacing

10 mm² Description
– Save time with our screwless component holder plug,
6 AWG – Same profile as ZS10 feed-through terminal block for aligned marking and identical end section use.

Ordering details
Description Color Type Order code Pkg Weight
qty (1 pce) g
3 Disconnect Profile aligned with ZS10 Grey ZS10-SP 1SNK508316R0000 50 8.60
1SNK161060F0014 Main technical data IEC UL - CSA Mounting instructions TH 35-7.5,
Rail
Connecting capacity
1 conductor Rigid - Solid / Stranded 0.2 ... 10 mm² 24 ... 6 AWG Wire stripping TH 35-15
12 mm
per clamp Flexible 0.22 ... 10 mm² length 0.472 in
with non insulated ferrule 0.22 ... 10 mm² 24 ... 8 AWG
with insulated ferrule 0.22 ... 6 mm² 24 ... 8 AWG
ZS10-SP Gauge A5-B5
2 conductors Rigid - Solid / Stranded 0.5 ... 4 mm² 20 ... 12 AWG Tool Flat screwdriver
per clamp Flexible 0.5 ... 4 mm² Ø 4 mm
with twin ferrule 0.5 ... 4 mm² 20 ... 12 AWG Ø 0.157 in
Rated current / Rated cross section 18 A / 2.5 mm² 18 A / 6 AWG
53 2.09"
Maximum current / Maximum cross section 18 A / 10 mm²
Rated short-time withstand current (1s) 300 A Torque 1.3 Nm ± 0.3
11.5 lb.in ± 2.65
56.3 2.22" 48.8 1.92" Rated voltage 630 V 300 V
Impulse withstand voltage
6000 V
NEMA 1
IP20
Protection
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
26.7 1.05" All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.ABB.com
8 mm 0.315 in spacing CE RoHS USR CSA EAC

Accessories
Description Color Type Order code Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
2 End sections 2.2 mm 0.087 in Dark grey ES4 1SNK505910R0000 20 2.20
3 Component plugs Components in series with circuit Dark grey PG5 1SNK900401R0000 20 3.50
3 4 4 Disconnect plugs Equipped with linking bar Orange PG5-R1 1SNK900402R0000 20 3.50
5 Terminal block Blank marker White MG-CPM 13 41791 1SNB041791R0612 1680 0.27
markers Blank card MC812 1SNK160000R0000 22 10.00
MC812PA 1SNK169999R0000 20 14.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
5
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.

1SNK161051S0201

All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
