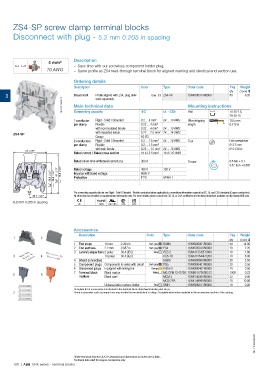

ZS4-SP screw clamp terminal blocks

Disconnect with plug - 5.2 mm 0.205 in spacing

4 mm² Description
– Save time with our screwless component holder plug,
10 AWG – Same profile as ZS4 feed-through terminal block for aligned marking and identical end section use.

Ordering details
Description Color Type Order code Pkg Weight
qty (1 pce) g
3 Disconnect Profile aligned with ZS4, plug deliv- Grey ZS4-SP 1SNK505313R0000 50 8.20
ered separetely
1SNK161023F0014 Main technical data Mounting instructions
UL - CSA
Rail
Connecting capacity
TH 35-7.5,
IEC
TH 35-15
1 conductor Rigid - Solid / Stranded 0.2 ... 4 mm² 24 ... 10 AWG Wire stripping 10.5 mm
per clamp Flexible 0.22 ... 4 mm² length 0.412 in
with non insulated ferrule 0.22 ... 4 mm² 24 ... 10 AWG
with insulated ferrule 0.22 ... 2.5 mm² 24 ... 14 AWG
ZS4-SP
Gauge A3-B3
2 conductors Rigid - Solid / Stranded 0.2 ... 1.5 mm² 24 ... 16 AWG Tool Flat screwdriver
per clamp Flexible 0.2 ... 1.5 mm² Ø 3.5 mm
with twin ferrule 0.22 ... 1.5 mm² 24 ... 16 AWG Ø 0.138 in
53 2.09"
Rated current / Rated cross section 18 A / 2.5 mm² 18 A / 10 AWG
Rated short-time withstand current (1s) 300 A Torque 0.6 Nm ± 0.1
5.31 lb.in ± 0.885
150 V
Rated voltage
400 V
56.3 2.22" 48.8 1.92" 81 3.19" 73.5 2.89" Impulse withstand voltage 6000 V NEMA 1
IP20
Protection
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
26.7 1.05" All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.ABB.com
5.2 mm 0.205 in spacing
CE RoHS USR CNR CSA EAC

Accessories
Description Color Type Order code Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
2 End sections 2.2 mm 0.087 in Dark grey ES4 1SNK505910R0000 20 2.20
3 Lateral jumper bars 2 poles 30 A (IEC) Grey PC5-2 1SNA113542R1000 10 1.80
3 4 10 poles 30 A (IEC) PC5-10 1SNA113544R1200 10 6.00
4 Shield connectors SHBS 1SNK900600R0000 20 3.50
5 Component plugs Components in series with circuit Dark grey PG5 1SNK900401R0000 20 3.50
6 Disconnect plugs Equipped with linking bar Orange PG5-R1 1SNK900402R0000 20 3.50
7 Terminal block Blank marker White MG-CPM 13 41790 1SNB041790R0512 1960 0.23
5 6
markers Blank card MC512 1SNK140000R0000 22 9.00
MC512PA 1SNK149999R0000 20 10.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops.
7 Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.

1SNK161033S0201

All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
108 | ABB SNK series - Terminal blocks
