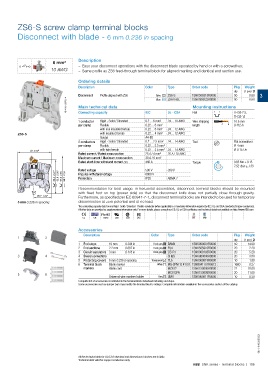

Page 109 - 1SNK160027C0207_SNK Series Terminal Blocks

ZS6-S screw clamp terminal blocks

Disconnect with blade - 6 mm 0.236 in spacing

6 mm² Description
– Ease your disconnect operations with the disconnect blade operated by hand or with a screwdriver,
10 AWG – Same profile as ZS6 feed-through terminal block for aligned marking and identical end section use.

Ordering details
Description Color Type Order code Pkg Weight
qty (1 pce) g
Disconnect Profile aligned with ZS6 Grey ZS6-S 1SNK506315R0000 50 8.60 3
1SNK161056F0014 Main technical data Mounting instructions
ZS6-S-BL
8.60
Blue
50
1SNK506322R0000
TH 35-7.5,
Rail
UL - CSA
Connecting capacity
IEC
TH 35-15
1 conductor Rigid - Solid / Stranded 0.2 ... 6 mm² 24 ... 10 AWG Wire stripping 10.5 mm
per clamp Flexible 0.22 ... 6 mm² length 0.412 in
with non insulated ferrule 0.22 ... 6 mm² 24 ... 12 AWG
ZS6-S with insulated ferrule 0.22 ... 4 mm² 24 ... 12 AWG
Gauge A4-B3
2 conductors Rigid - Solid / Stranded 0.2 ... 2.5 mm² 24 ... 14 AWG Tool Flat screwdriver
per clamp Flexible 0.22 ... 2.5 mm² Ø 4 mm
with twin ferrule 0.22 ... 2.5 mm² 24 ... 14 AWG Ø 0.157 in
53 2.09"
Rated current / Rated cross section 25 A / 4 mm² 25 A / 10 AWG
Maximum current / Maximum cross section 30 A / 6 mm²
Rated short-time withstand current (1s) 480 A Torque 0.85 Nm ± 0.15
7.52 lb.in ± 1.33
Rated voltage 500 V 300 V
60.4 2.37" 52.9 2.08" 67.2 2.64" 59.7 2.35" Impulse withstand voltage 6000 V NEMA 1
Protection
IP20
Recommendation for best usage: in horizontal assemblies, disconnect terminal blocks should be mounted
with fixed foot on top (power side) so that the disconnect knife does not partially close through gravity.
26.7 1.05" Furthermore, as specified per IEC 60947-7-1, disconnect terminal blocks are intended to be used for temporary
6 mm 0.236 in spacing disconnection at zero potential and at no load.
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.ABB.com
CE CB RoHS USR CSA EAC BV DNV
Accessories
Description Color Type Order code Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
2 End sections 2.2 mm 0.087 in Dark grey ES4 1SNK505910R0000 20 2.20
3 Circuit separators 3 mm 0.118 in Dark grey CS-R1 1SNK900103R0000 20 5.20
3 4 4 Shield connectors SHBS 1SNK900600R0000 20 3.50
5 Protecting covers 6 mm 0.236 in spacing Transparent PL6 1SNK900619R0000 10 1.80
6 Terminal block Blank marker White MG-CPM 13 41791 1SNB041791R0612 1680 0.27
markers Blank card MC612 1SNK150000R0000 22 10.00
MC612PA 1SNK159999R0000 20 11.00
5 6
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.

1SNK161046S0201

All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
ABB SNK series - Terminal blocks | 105
