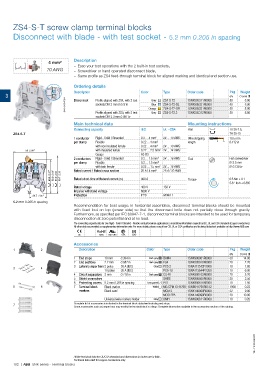

Page 106 - 1SNK160027C0207_SNK Series Terminal Blocks

ZS4-S-T screw clamp terminal blocks

Disconnect with blade - with test socket - 5.2 mm 0.205 in spacing

4 mm² Description
– Ease your test operations with the 2 built-in test sockets,
10 AWG – Screwdriver or hand operated disconnect blade,
– Same profile as ZS4 feed-through terminal block for aligned marking and identical end section use.

Ordering details
Description Color Type Order code Pkg Weight
3 Disconnect Profile aligned with ZS4, with 2 test Grey ZS4-S-T2 1SNK505311R0000 qty (1 pce) g
1SNK161034F0014 sockets DIA 2 mm 0.079 in Orange ZS4-S-T2-BL 1SNK505321R0000 50 8.90
8.90
50
Blue
8.90
1SNK505331R0000
50
ZS4-S-T2-OR
Profile aligned with ZS4, with 2 test
sockets DIA 2.3 mm 0.091 in Grey ZS4-S-T2.3 1SNK505312R0000 50 8.80
Main technical data Mounting instructions
Connecting capacity IEC UL - CSA Rail TH 35-7.5,
ZS4-S-T TH 35-15
1 conductor Rigid - Solid / Stranded 0.2 ... 4 mm² 24 ... 10 AWG Wire stripping 10.5 mm
per clamp Flexible 0.22 ... 4 mm² length 0.412 in
with non insulated ferrule 0.22 ... 4 mm² 24 ... 10 AWG
53 2.09" with insulated ferrule 0.22 ... 2.5 mm² 24 ... 14 AWG
Gauge A3-B3
2 conductors Rigid - Solid / Stranded 0.2 ... 1.5 mm² 24 ... 16 AWG Tool Flat screwdriver
per clamp Flexible 0.2 ... 1.5 mm² Ø 3.5 mm
with twin ferrule 0.22 ... 1.5 mm² 24 ... 16 AWG Ø 0.138 in
25 A / 4 mm²
25 A / 10 AWG
Rated current / Rated cross section
60.4 2.37" 52.9 2.08" 67.2 2.64" 59.7 2.35" Rated short-time withstand current (1s) 480 A Torque 0.6 Nm ± 0.1
5.31 lb.in ± 0.885
Rated voltage 400 V 150 V
Impulse withstand voltage 6000 V
26.7 1.05" Protection IP20 NEMA 1
5.2 mm 0.205 in spacing
Recommendation for best usage: in horizontal assemblies, disconnect terminal blocks should be mounted
with fixed foot on top (power side) so that the disconnect knife does not partially close through gravity.
Furthermore, as specified per IEC 60947-7-1, disconnect terminal blocks are intended to be used for temporary
disconnection at zero potential and at no load.
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.ABB.com

CE RoHS USR CNR CSA EAC
Accessories
1 2 Description Color Type Order code Pkg Weight
qty (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
2 End sections 2.2 mm 0.087 in Dark grey ES4 1SNK505910R0000 20 2.20
3 Lateral jumper bars 2 poles 30 A (IEC) Grey PC5-2 1SNA113542R1000 10 1.80
3 4
10 poles 30 A (IEC) PC5-10 1SNA113544R1200 10 6.00
4 Circuit separators 3 mm 0.118 in Dark grey CS-R1 1SNK900103R0000 20 5.20
5 Shield connectors SHBS 1SNK900600R0000 20 3.50
6 Protecting covers 5.2 mm 0.205 in spacing Transparent PL5 1SNK900618R0000 10 1.50
5 6 7 Terminal block Blank marker White MG-CPM 13 41790 1SNB041790R0512 1960 0.23
markers Blank card MC512 1SNK140000R0000 22 9.00
MC512PA 1SNK149999R0000 20 10.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
7 Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.

1SNK161042S0201

All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
102 | ABB SNK series - Terminal blocks
