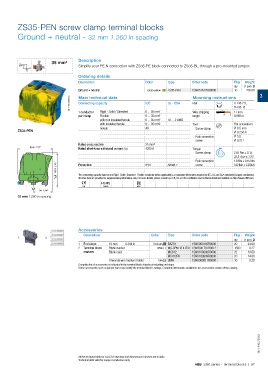

Page 101 - 1SNK160027C0207_SNK Series Terminal Blocks

ZS35-PEN screw clamp terminal blocks

Ground + neutral - 32 mm 1.260 in spacing

35 mm² Description
N
Simplify your PE.N connection with ZS35-PE block connected to ZS35-BL through a pre-mounted jumper.
Ordering details
Description Color Type Order code Pkg Weight
qty (1 pce) g
Ground + neutral Green-yellow ZS35-PEN 1SNK516170R0000 10 236.00
3
Mounting instructions
Main technical data
1SNK161063F0014 Connecting capacity IEC UL - CSA Rail TH 35-7.5,
TH 35-15
1 conductor Rigid - Solid / Stranded 6 ... 35 mm² Wire stripping 17 mm
per clamp Flexible 6 ... 35 mm² length 0.669 in
with non insulated ferrule 6 ... 35 mm² 10 ... 2 AWG
with insulated ferrule 6 ... 35 mm² Tool Flat screwdriver
Gauge A9 Screw clamp Ø 6.5 mm
ZS35-PEN Ø 0.256 in
Rail connection Ø 5.5
screw Ø 0.217
Rated cross section 35 mm²
60.3 2.37"
Rated short-time withstand current (1s) 4200 A Torque
Screw clamp 2.65 Nm ± 0.15
23.5 lb.in ± 1.33
Rail connection 1.6 Nm ± 0.15 Nm
63.3 2.49" Protection IP10 NEMA 1 screw 14.2 lb.in ± 1.33 lb.in

The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.ABB.com
CE RoHS EAC
34 1.34"
32 mm 1.260 in spacing

Accessories
Description Color Type Order code Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAZH1 1SNK900102R0000 20 24.00
2 Terminal block Blank marker White MG-CPM 13 41791 1SNB041791R0612 1680 0.27
markers Blank card MC812 1SNK160000R0000 22 10.00
MC812PA 1SNK169999R0000 20 14.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.

1SNK161047S0201

All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
ABB SNK series - Terminal blocks | 97
