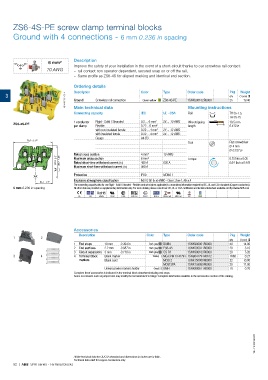

Page 96 - 1SNK160027C0207_SNK Series Terminal Blocks

ZS6-4S-PE screw clamp terminal blocks

Ground with 4 connections - 6 mm 0.236 in spacing

6 mm² Description
Improve the safety of your installation in the event of a short-circuit thanks to our screwless rail contact:
10 AWG – rail contact non operator dependent, secured snap on or off the rail,
– Same profile as ZS6-4S for aligned marking and identical end section.

Ordering details
Description Color Type Order code Pkg Weight
1SNK161091V0014 Ground Screwless rail connection Green-yellow ZS6-4S-PE 1SNK506152R0000 25 19.40
3 qty (1 pce) g
Main technical data
Connecting capacity IEC UL - CSA Mounting instructions TH 35-7.5,
Rail
TH 35-15
1 conductor Rigid - Solid / Stranded 0.2 ... 6 mm² 24 ... 10 AWG Wire stripping 10.5 mm
ZS6-4S-PE
per clamp Flexible 0.22... 6 mm² length 0.413 in
with non insulated ferrule 0.22 ... 4 mm² 24 ... 12 AWG
with insulated ferrule 0.22 ... 4 mm² 24 ... 12 AWG
Gauge A4-B3
79.2 3.12"
Tool Flat screwdriver
Ø 4 mm
Ø 0.157 in
Rated cross section 4 mm² 10 AWG
57.2 2.3" 49.7 1.96" Maximum cross section 6 mm² 636 A Torque 0.75 Nm ± 0.05
480 A
6.64 lb.in ± 0.443
Rated short-time withstand current (1s)
Maximum short-time withstand current (1s) 480 A
Protection IP20 NEMA 1
Explosive atmosphere classification IM2 II 2 GD Ex eb I/II/IIIC – Class I, Zone 1, AEx e II
35.7 1.4"
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
6 mm 0.236 in spacing All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.ABB.com
CE CB RoHS USR CSA EAC Ex ATEX IECEx BR-Ex e II Haz Loc BV DNV

Accessories
Description Color Type Order code Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
2 End sections 2.2 mm 0.087 in Dark grey ES6-4S 1SNK505911R0000 20 3.10
3 Circuit separators 3 mm 0.118 in Dark grey CS-R1 1SNK900103R0000 20 5.20
3 4 4 Terminal block Blank marker White MG-CPM 13 41791 1SNB041791R0612 1680 0.27
markers Blank card MC612 1SNK150000R0000 22 10.00
MC612PA 1SNK159999R0000 20 11.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.

1SNK161081S0201

All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
