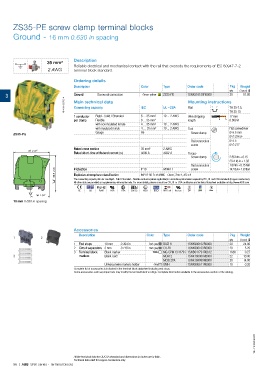

Page 100 - 1SNK160027C0207_SNK Series Terminal Blocks

ZS35-PE screw clamp terminal blocks

Ground - 16 mm 0.630 in spacing

35 mm² Description
Reliable electrical and mechanical contact with the rail that exceeds the requirements of IEC 60947-7-2
2 AWG terminal block standard.

Ordering details
Description Color Type Order code Pkg Weight
qty (1 pce) g
3 Ground Screw rail connection Green-yellow ZS35-PE 1SNK516150R0000 20 81.80
1SNK161005F0014 Main technical data IEC UL - CSA Mounting instructions TH 35-7.5,
Rail
Connecting capacity
17 mm
1 conductor Rigid - Solid / Stranded 6 ... 35 mm² 10 ... 2 AWG Wire stripping TH 35-15
per clamp Flexible 6 ... 35 mm² length 0.669 in
with non insulated ferrule 4 ... 35 mm² 10 ... 2 AWG
with insulated ferrule 4 … 35 mm² 10 ... 2 AWG Tool Flat screwdriver
Gauge A9 Screw clamp Ø 6.5 mm
ZS35-PE
Ø 0.256 in
Rail connection Ø 5.5
screw Ø 0.217
Rated cross section 35 mm² 2 AWG
59 2.32"
Rated short-time withstand current (1s) 4200 A 4032 A Torque
Screw clamp 2.65 Nm ± 0.15
23.4 lb.in ± 1.33
Rail connection 1.6 Nm ± 0.15 Nm
63.3 2.49" Protection IP10 NEMA 1 screw 14.2 lb.in ± 1.33 lb.in
IM2 II 2 GD Ex eb I/II/IIIC – Class I, Zone 1, AEx e II
Explosive atmosphere classification
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.ABB.com
CE CB RoHS USR CSA EAC Ex ATEX IECEx BR-Ex e II Haz Loc BV DNV Rina
34 1.34"
16 mm 0.630 in spacing

Accessories
Description Color Type Order code Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAZH1 1SNK900102R0000 20 24.00
2 Circuit separators 3 mm 0.118 in Dark grey CS-R1 1SNK900103R0000 20 5.20
3 Terminal block Blank marker White MG-CPM 13 41791 1SNB041791R0612 1680 0.27
3 markers Blank card MC812 1SNK160000R0000 22 10.00
MC812PA 1SNK169999R0000 20 14.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.

1SNK161020S0201

All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
96 | ABB SNK series - Terminal blocks
