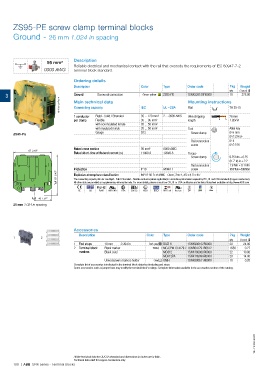

ZS95-PE screw clamp terminal blocks

Ground - 26 mm 1.024 in spacing

95 mm² Description
Reliable electrical and mechanical contact with the rail that exceeds the requirements of IEC 60947-7-2
0000 AWG terminal block standard.

Ordering details
Description Color Type Order code Pkg Weight
qty (1 pce) g
3 Ground Screw rail connection Green-yellow ZS95-PE 1SNK526150R0000 10 278.00
1SNK161024F0014 Main technical data IEC UL - CSA Mounting instructions TH 35-15
Rail
Connecting capacity
1 conductor Rigid - Solid / Stranded 35 ... 120 mm² 2 ... 0000 AWG Wire stripping 26 mm
per clamp Flexible 35 ... 95 mm² length 1.024 in
with non insulated ferrule 35 ... 50 mm²
with insulated ferrule 35 ... 50 mm² Tool Allen key
Gauge B12 Screw clamp Ø 6 mm
ZS95-PE
Ø 0.236 in
Rail connection Ø 4
screw Ø 0.158
Rated cross section 95 mm² 0000 AWG
87 3.43"
Rated short-time withstand current (1s) 11400 A 12840 A Torque
Screw clamp 9.25 Nm ± 0.25
81.7 lb.in ± 2.2
Rail connection 1.9 Nm ± 0.1 Nm
Protection IP10 NEMA 1 screw 16.82 lb.in ± 0.885 lb.in
87 3.43" Explosive atmosphere classification IM2 II 2 GD Ex eb I/II/IIIC – Class I, Zone 1, AEx e II, Ex e II U
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.ABB.com
CE CB RoHS USR CNR CSA EAC Ex ATEX IECEx BR-Ex e II Haz Loc BV DNV Rina

46 1.81"
26 mm 1.024 in spacing

Accessories
Description Color Type Order code Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAZH1 1SNK900102R0000 20 24.00
2 Terminal block Blank marker White MG-CPM 13 41791 1SNB041791R0612 1680 0.27
markers Blank card MC812 1SNK160000R0000 22 10.00
MC812PA 1SNK169999R0000 20 14.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.

1SNK161024S0201

All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
