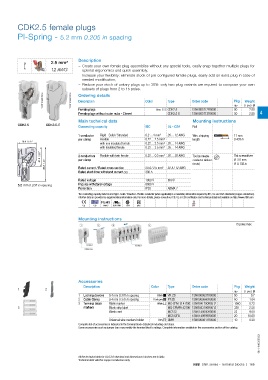

Page 169 - 1SNK160027C0207_SNK Series Terminal Blocks

CDK2.5 female plugs

PI-Spring - 5.2 mm 0.205 in spacing

2.5 mm² Description
– Create your own female plug assemblies without any special tools, easily snap together multiple plugs for
12 AWG optimal ergonomics and quick assembly,
– Increase your flexibility: eliminate stock of pre-configured female plugs, easily add an extra plug in case of
needed modification,
– Reduce your stock of unitary plugs up to 30%: only two plug variants are required to compose your own
subsets of plugs from 2 to 15 poles.
1SNK160291V0014 1SNK160292V0014 Ordering details Color Type Order code Pkg (1 pce) g
Description
Weight
qty
Female plugs Grey CDK2.5 1SNK805712R0000 50 2.80
Female plugs without outer nubs - Closed CDK2.5-E 1SNK805713R0000 50 2.80 4
Main technical data Mounting instructions
CDK2.5 CDK2.5-E
Connecting capacity IEC UL - CSA Rail
1 conductor Rigid - Solid / Stranded 0.2 ... 4 mm² 26 ... 12 AWG Wire stripping 11 mm
per clamp Flexible 0.22 ... 2.5 mm² length 0.433 in
19.1 0.75"
with non insulated ferrule 0.22 ... 2.5 mm² 26 ... 14 AWG
with insulated ferrule 0.22 ... 2.5 mm² 26 ... 14 AWG
21.1 0.83" 2 conductors Flexible with twin ferrule 0.22 ... 0.5 mm² 26 ... 20 AWG Tool (for flexible Flat screwdriver
per clamp
Ø 3.5 mm
conductor without
36.2 1.43" Rated current / Rated cross section 24 A / 2.5 mm² 22 A / 12 AWG ferrule) Ø 0.138 in
Rated short-time withstand current (1s) 300 A
Rated voltage 1000 V 600 V
5.2 mm 0.205 in spacing Impulse withstand voltage 8000 V
Protection IP20 NEMA 1
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.ABB.com
CE CB RoHS USR CNR CSA EAC BV

Mounting instructions
15 poles max.

Accessories
Description Color Type Order code Pkg Weight
1 2
qty (1 pce) g
1 Locking devices 9.4 mm 0.370 in spacing Black VR-ZD 1SNK900637R0000 50 0.7
2 Cable Clamp 9.4 mm 0.370 in spacing Dark grey PT-ZD 1SNK900660R0000 50 1.04
3 Terminal block Blank marker White MG-CPM 13 41790 1SNB041790R0512 1960 0.23
3 markers Blank strip label MG-CPMFA 43196 1SNB043196R0012 350 2.56
Blank card MC512 1SNK140000R0000 22 9.00
MC512PA 1SNK149999R0000 20 10.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.
1SNK164005S0201

All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
ABB SNK series - Terminal blocks | 165
