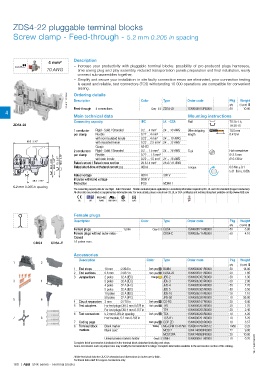

ZDS4-22 pluggable terminal blocks

Screw clamp - Feed-through - 5.2 mm 0.205 in spacing

4 mm² Description
– Increase your productivity with pluggable terminal blocks: possibility of pre-produced plugs harnesses,
10 AWG time saving plug and play assembly, reduced transportation panels preparation and final installation, easily
connect sub-assemblies together,
– Simplify and secure your installation: in site faulty connection errors are eliminated, prior connection testing
is eased and reliable, test connectors (TC5) withstanding 10 000 operations are compatible for convenient
testing.
1SNK161137V0014 Ordering details Color Type Order code Pkg (1 pce) g
Weight
Description
qty
4 Feed-through 4 connections Grey ZDS4-22 1SNK805013R0000 50 10.80
Main technical data Mounting instructions
Connecting capacity IEC UL - CSA Rail TH 35-7.5,
ZDS4-22 TH 35-15
1 conductor Rigid - Solid / Stranded 0.2 ... 4 mm² 24 ... 10 AWG Wire stripping 10.5 mm
per clamp Flexible 0.22 ... 4 mm² length 0.413 in
with non insulated ferrule 0.22 ... 4 mm² 24 … 10 AWG
80.3 3.16" with insulated ferrule 0.22 ... 2.5 mm² 24 ... 12 AWG
Gauge A3-B3
2 conductors Rigid - Solid / Stranded 0.2 ... 1.5 mm² 24 ... 16 AWG Tool Flat screwdriver
0.22 … 1.5 mm²
Ø 3.5 mm
Flexible
per clamp
with twin ferrule
56.4 2.22" 48.9 1.93" 73 2.87" 65.5 2.58" Rated current / Rated cross section 0.22 ... 1.5 mm² 24 ... 16 AWG Torque Ø 0.138 in
29 A / 4 mm²
28 A / 10 AWG
480 A
0.6 Nm ± 0.1
Rated short-time withstand current (1s)
5.31 lb.in ± 0.885
Rated voltage 800 V 300 V
Impulse withstand voltage 8000 V
48.3 1.90"
Protection IP20 NEMA 1
5.2 mm 0.205 in spacing
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.ABB.com
CE CB RoHS USR CNR CSA EAC BV
Female plugs
Description Color Type Order code Pkg Weight
qty (1 pce) g
Female plugs 1 pole Grey CDS4 1SNK805714R0000 50 3.90
Female plugs without outer nubs - CDS4-E 1SNK805715R0000 50 4.10
Closed
CDS4 CDS4-E 15 poles max.
Accessories
Description Color Type Order code Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAM4 1SNK900001R0000 50 14.00
2 End sections 0.8 mm 0.031 in Dark grey EDS4-22 1SNK805911R0000 20 1.85
3 Jumper bars 2 poles 32 A (IEC) Orange JB5-2 1SNK905302R0000 50 1.30
3 4 3 poles 32 A (IEC) JB5-3 1SNK905303R0000 50 2.00
4 poles 32 A (IEC) JB5-4 1SNK905304R0000 50 2.70
5 poles 32 A (IEC) JB5-5 1SNK905305R0000 50 3.50
10 poles 32 A (IEC) JB5-10 1SNK905310R0000 30 7.10
50 poles 32 A (IEC) JB5-50 1SNK905350R0000 10 36.00
5 6
4 Circuit separators 3 mm 0.118 in Dark grey CS-R3 1SNK900107R0000 20 6.40
5 Test adapters For test plugs DIA 2 mm 0.079 in Dark grey TP2 1SNK900203R0000 20 1.70
For test plugs DIA 4 mm 0.157 in TP4 1SNK900205R0000 20 2.40
6 Test connectors 5.2 mm 0.205 in spacing Dark grey TC5 1SNK900200R0000 10 5.20
7 8 End module, 5.2 mm 0.205 in TC5-R1 1SNK900201R0000 10 5.20
7 Coding pegs Dark grey COP-ZD 1SNK900636R0000 10 3.57
8 Terminal block Blank marker White MG-CPM 13 41790 1SNB041790R0512 1960 0.23
markers Blank card MC512 1SNK140000R0000 22 9.00
MC512PA 1SNK149999R0000 20 10.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops. 1SNK164003S0201
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.

All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
