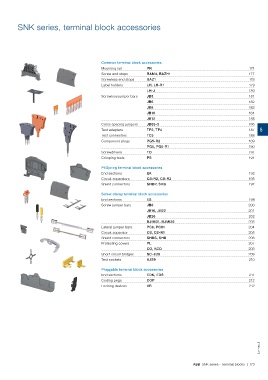

SNK series, terminal block accessories

Common terminal block accessories
Mounting rail PR 174
Screw end stops BAM4, BAZH1 177
Screwless end stops BAZ1 178
Label holders LH, LH-R1 179
LH-J 180
Screwless jumper bars JB5 181
JB6 182
JB8 183
JB10 184
JB12 185
Cross spacing jumpers JB85-3 186
Test adapters TP2, TP4 187 5
Test connectors TC5 188
Component plugs PG5-R2 189
PG5, PG5-R1 190
Screwdrivers TO 191
Crimping tools PS 191

PI-Spring terminal block accessories
End sections EK 192
Circuit separators CS-R2, CS-R3 195
Shield connectors SHBP, SHB 197

Screw clamp terminal block accessories
End sections ES 198
Screw jumper bars JB8 200
JB16, JB22 201
JB26 202
BJMI31, BJMI36 203
Lateral jumper bars PC8, PC81 204
Circuit separator CS, CS-R1 205
Shield connectors SHBS, SHB 206
Protecting covers PL 207
CO, KCO 208
Short circuit bridges SC-JB8 209
Test sockets AJS9 210

Pluggable terminal block accessories
End sections EDK, EDS 211
Coding pegs COP 212
Locking devices VR 212

Summary_5

ABB SNK series - Terminal blocks | 173
