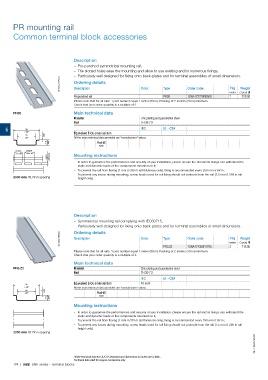

Page 178 - 1SNK160027C0207_SNK Series Terminal Blocks

PR mounting rail

Common terminal block accessories

Description
– Pre-punched symmetrical mounting rail,
– The slotted holes ease the mounting and allow to use existing and/or numerous fixings,
– Particularly well designed for fixing onto back-plates and for terminal assemblies of small dimensions.
1SNK500072F0000 Ordering details Color Type Order code Pkg Weight

Description
2
Prepunched rail PR30 1SNA173220R0500 meter (1 pce) g
328.00
Please note that for all rails: 1 part number equal 1 meter (39 in). Packing of 2 meters (78 in) minimum.
Check that your order quantity is a multiple of 2.
PR30 Main technical data
Material Zinc plating and passivation steel
Rail TH 35-7.5
5 IEC UL - CSA
Equivalent E-Cu cross section
All the main technical data provided are "manufacturer" values.
RoHS
Mounting instructions
– In order to guarantee the performances and security of your installation, please ensure the rail and its fixings can withstand the
static and dynamic loads of the components mounted on it;
– To prevent the rail from flexing (1 mm 0.039 in rail thickness only), fixing is recommended every 250 mm 9.84 in;
– To prevent any issues during mounting, screw heads used for rail fixing should not protrude from the rail (7,5 mm 0.295 in rail
2000 mm 78.74 in spacing height only).

Description
– Symmetrical mounting rail complying with IEC60715,
– Particularly well designed for fixing onto back-plates and for terminal assemblies of small dimensions.
Ordering details
1SNK500073F0000 Description Color Type Order code Pkg (1 pce) g
Weight
meter
1SNA174300R1700
PR3.Z2
Please note that for all rails: 1 part number equal 1 meter (39 in). Packing of 2 meters (78 in) minimum. 2 718.00
Check that your order quantity is a multiple of 2.
Main technical data
PR3.Z2 Material Zinc plating and passivation steel
Rail TH 35-7.5
IEC UL - CSA
Equivalent E-Cu cross section 16 mm²
All the main technical data provided are "manufacturer" values.

RoHS
Mounting instructions
– In order to guarantee the performances and security of your installation, please ensure the rail and its fixings can withstand the
static and dynamic loads of the components mounted on it;
– To prevent the rail from flexing (1 mm 0.039 in rail thickness only), fixing is recommended every 250 mm 9.84 in;
– To prevent any issues during mounting, screw heads used for rail fixing should not protrude from the rail (7,5 mm 0.295 in rail
height only).
2000 mm 78.74 in spacing
1SNK160017S0201

All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
174 | ABB SNK series - Terminal blocks
