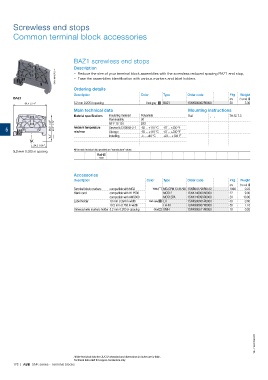

Page 182 - 1SNK160027C0207_SNK Series Terminal Blocks

Screwless end stops

Common terminal block accessories

BAZ1 screwless end stops
Description
1SNK160160F0014 – Reduce the size of your terminal block assemblies with the screwless reduced spacing BAZ1 end stop,
– Ease the assemblies identification with various markers and label holders.

Ordering details
Description Color Type Order code Pkg Weight
BAZ1 qty (1 pce) g
54.4 2.14" 5.2 mm 0.205 in spacing Dark grey BAZ1 1SNK900002R0000 50 5.30
Main technical data Mounting instructions
Material specifications Insulating material Polyamide Rail TH 35-7.5
Flammability V0
36.2 1.42" 43.7 1.72" NF F 16 101 I2F2
5 Ambient temperature Service IEC 60068-2-1 -55 ... +110 °C -67 ... +230 °F
-67 ... +230 °F
-55 ... +110 °C
Storage
min/max
Installing -5 ... +40 °C +23 ... +104 °F

24.2 0.95"
5.2 mm 0.205 in spacing All the main technical data provided are "manufacturer" values
RoHS

Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
Terminal block markers compatible with MG3 White MG-CPM 13 41790 1SNB041790R0512 1960 0.23
Blank card compatible with HTP500 MC512 1SNK140000R0000 22 9.00
compatible with AMS600 MC512PA 1SNK149999R0000 20 10.00
Label holder 10 mm 0.394 in width Dark grey LH 1SNK900605R0000 50 0.60
19.5 mm 0.768 in width LH-R1 1SNK900607R0000 50 1.10
Universal wire markers holder 5.2 mm 0.205 in spacing Grey UMH 1SNK900611R0000 10 0.20

1SNK160002S0201

All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
178 | ABB SNK series - Terminal blocks
