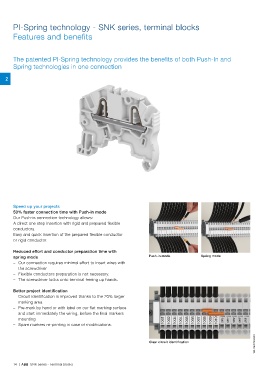

PI-Spring technology - SNK series, terminal blocks

Features and benefits

The patented PI-Spring technology provides the benefits of both Push-In and
Spring technologies in one connection

2

Speed up your projects
50% faster connection time with Push-in mode
Our Push-in connection technology allows:
A direct one step insertion with rigid and prepared flexible
conductors.
Easy and quick insertion of the prepared flexible conductor
or rigid conductor.

Reduced effort and conductor preparation time with
spring mode Push-in mode Spring mode
– Our connection requires minimal effort to insert wires with
the screwdriver
– Flexible conductors preparation is not necessary.
– The screwdriver locks onto terminal freeing up hands.

Better project identification
– Circuit identification is improved thanks to the 20% larger
marking area
– Pre-mark by hand or with label on our flat marking surface
and start immediately the wiring, before the final markers
mounting
– Spare markers re-printing in case of modifications.

1SNK162074S0201
Clear circuit identification
