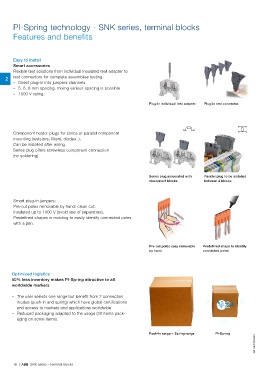

PI-Spring technology - SNK series, terminal blocks

Features and benefits

Easy to install
Smart accessories
Flexible test solutions from individual insulated test adapter to
2 test connectors for complete assemblies testing.
– Direct plug-in into jumpers channels
– 5, 6, 8 mm spacing, mixing various spacing is possible
– 1000 V rating.

Plug-in individual test adapter. Plug-in test connector.

Component holder plugs for series or parallel component
mounting (resistors, filters, diodes..).
Can be installed after wiring.
Series plug offers screwless component connection
(no soldering).

Series plug associated with Parallel plug to be installed
disconnect blocks. between 2 blocks.

Smart plug-in jumpers:
Pre-cut poles removable by hand: clean cut.
Insulated up to 1000 V (avoid use of separators).
Predefined shapes in molding to easily identify connected poles
with a pen.

Pre-cut poles easy removable Predefined shape to identify
by hand. connected poles.

Optimized logistics
50% less inventory makes PI-Spring attractive to all
worldwide markets

– The user selects one range but benefit from 2 connection
modes (push-in and spring) which have global certifications
and access to markets and applications worldwide
– Reduced packaging adapted to the usage (20 items pack-
aging on some items).

Push-in range + Spring range PI-Spring
