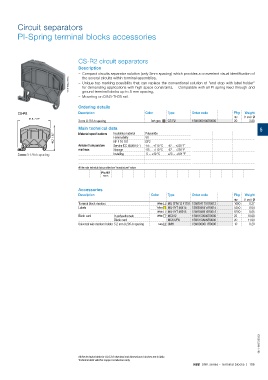

Page 199 - 1SNK160027C0207_SNK Series Terminal Blocks

Circuit separators

PI-Spring terminal blocks accessories

CS-R2 circuit separators
Description
– Compact circuits separator solution (only 3mm spacing) which provides a convenient visual identification of
the several circuits within terminal assemblies,
1SNK160240V0014 – Unique top marking possibility that can replace the conventional solution of "end stop with label holder"
for demanding applications with high space constraints, - Compatible with all PI-spring feed-through and
ground terminal blocks up to 8 mm spacing,
– Mounting on DIN3-TH35 rail.

Ordering details
CS-R2 Description Color Type Order code Pkg Weight
qty (1 pce) g
61.8 2.67"
3 mm 0.118 in spacing Dark grey CS-R2 1SNK900106R0000 20 3.80
Main technical data 5
48.7 1.92" Material specifications Insulating material Polyamide
Flammability
V0
I2F2
NF F 16 101
Ambient temperature Service IEC 60068-2-1 -55 ... +110 °C -67 ... +230 °F
min/max Storage -55 ... +110 °C -67 ... +230 °F
3 mm 0.118 in spacing Installing -5 ... +40 °C +23 ... +104 °F
All the main technical data provided are "manufacturer" values
RoHS

Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
Terminal block markers White MG-CPM 13 41791 1SNB041791R0612 1680 0.27
Labels Yellow MG-VYT 46415 1SNB046415R0615 5250 0.04
White MG-VYT 46915 1SNB046915R0615 5250 0.05
Blank card In polycarbonate White MC612 1SNK150000R0000 22 10.00
Blank card MC612PA 1SNK159999R0000 20 11.00
Universal wire markers holder 5.2 mm 0.205 in spacing Grey UMH 1SNK900611R0000 10 0.20

1SNK160072S0201

All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
