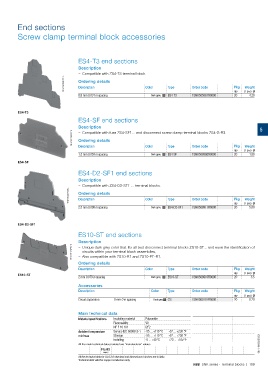

Page 203 - 1SNK160027C0207_SNK Series Terminal Blocks

End sections

Screw clamp terminal block accessories

ES4-T3 end sections
Description
– Compatible with ZS4-T3 terminal block.
1SNK160232V0014 Ordering details Color Type Order code Pkg Weight

Description
0.8 mm 0.031 in spacing Dark grey ES4-T3 1SNK505961R0000 qty (1 pce) g
20
4.20

ES4-T3
ES4-SF end sections
Description 5
1SNK161026F0014 Ordering details
– Compatible with fuse ZS4-SF1... and disconnect screw clamp terminal blocks ZS4-S-R3.

Order code
Weight
Pkg
Description
Type
Color
qty (1 pce) g
1.5 mm 0.059 in spacing Dark grey ES4-SF 1SNK508960R0000 20 1.80
ES4-SF
ES4-D2-SF1 end sections
Description
– Compatible with ZS4-D2-SF1 ... terminal blocks.
1SNK160231V0014 Ordering details Color Type Order code Pkg Weight

Description
2.5 mm 0.098 in spacing Dark grey ES4-D2-SF1 1SNK508911R0000 qty (1 pce) g
20
5.00

ES4-D2-SF1
ES10-ST end sections
Description
1SNK161072F0014 – Unique dark grey color that fits all test disconnect terminal blocks ZS10-ST... and ease the identification of
circuits within your terminal block assemblies,
– Also compatible with ZS10-R1 and ZS10-PE-R1.
Ordering details
Description Color Type Order code Pkg Weight
qty (1 pce) g
ES10-ST
2 mm 0.079 in spacing Dark grey ES10-ST 1SNK508910R0000 20 3.5
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
Circuit separators 0 mm 0 in spacing Dark grey CS 1SNK900101R0000 20 0.20

Main technical data
Material specifications Insulating material Polyamide
Flammability V0
NF F 16 101 I2F2
Ambient temperature Service IEC 60068-2-1 -55 ... +110 °C -67 ... +230 °F
min/max Storage -55 ... +110 °C -67 ... +230 °F
Installing -5 ... +40 °C +23 ... +104 °F
All the main technical data provided are "manufacturer" values. 1SNK160062S0201
RoHS
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
ABB SNK series - Terminal blocks | 199
